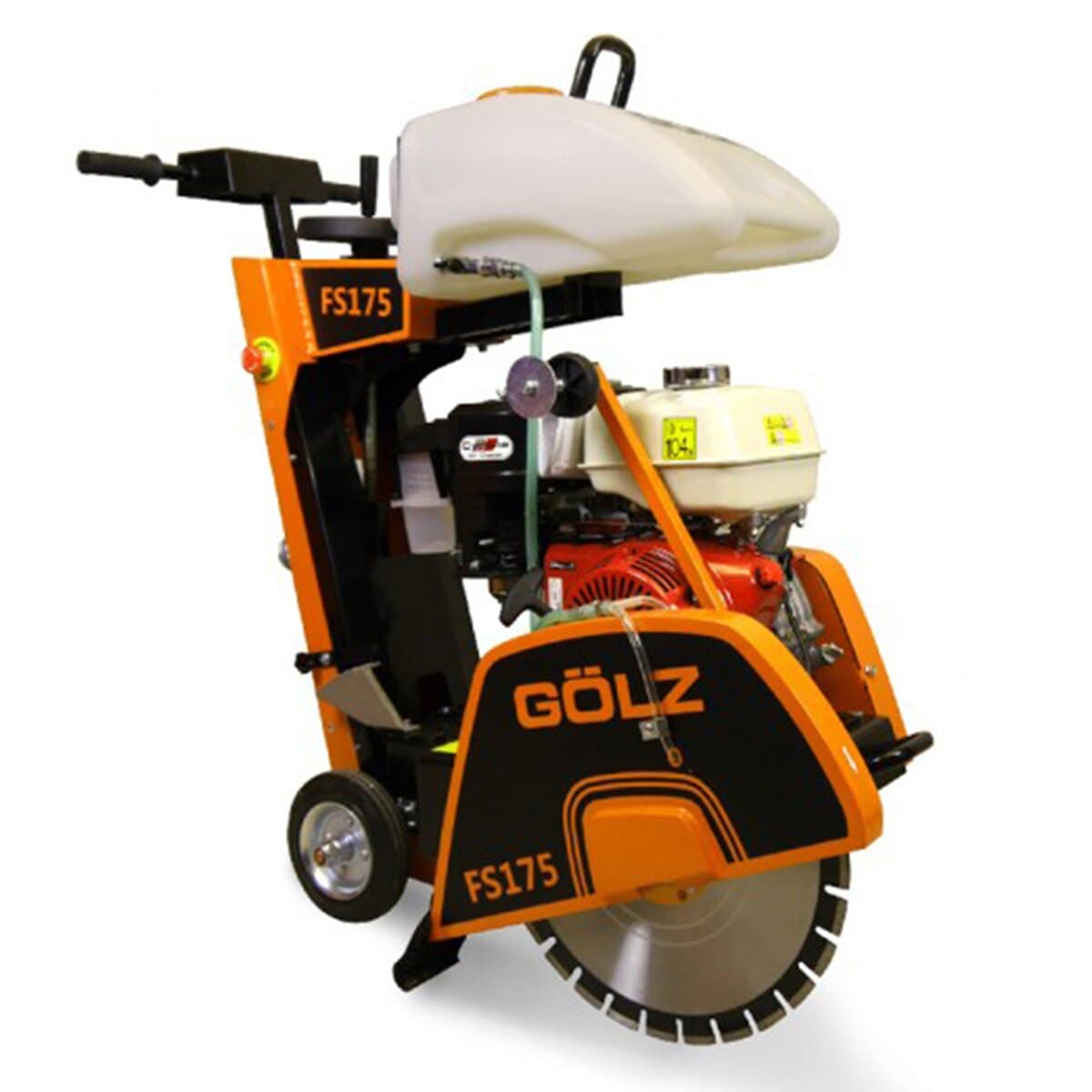

Golz Floor Saw FS175

Compact and solid Push Saw for small services and repair jobs in roadworks with adjustable height and anti-vibration handles for a clear focus on operators convenience
13 HP Honda gas engine- Blade 18″ (450 mm) – Cutting depth 6 1/2″ (165 mm)

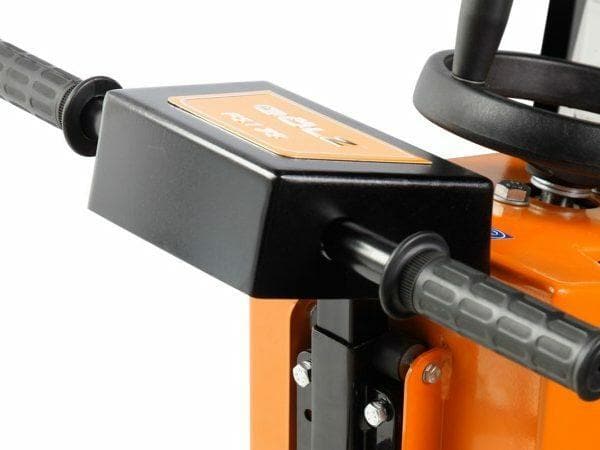

Adjustable anti vibration handles for operators comfort

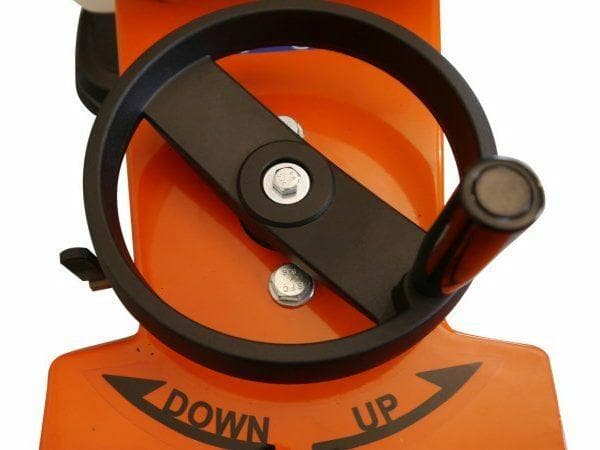

Cutting depth adjustment by handwheel
Cutting depth indicator
Front cutting guide
Parking break
Lifting frame

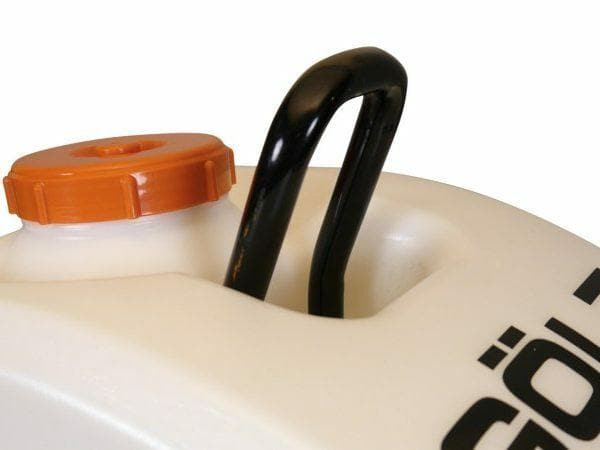

25 Liter water tank, easy to fill
Big rear wheels for good chassis clearance
Durable Poly-V belt for an optimum of power transmission

Specification

US Standard
Metric

Max Cutting depth
6 1/2 in.
165 mm

Blade diameter
18 in.
450 mm

Shaft size
1 in.
25,4 mm

Water tank
26 1/2qt
25 Liter

Engine
Honda GX390

Engine power (net power)
13HP/9,5kW (11,8HP/8,7kW)

Shaft speed
2.300 rpm

Feed motion
Push

Cutting depth adjustment
Handwheel

Power transmission
Poly-V Belt

Hand Arm Vibrations
4,5 m/s2

Dimensions (LxWxH)
48 in. x 19 in. x 46 in.
1220x491x1160 mm

Weight
243 lbs.
110 kg

Order-No.
0282 175 6000
