Golz Floor Saw FS170

FS 170
Robust and solid Push Saw with hot galvanized chassis for durable operation in the construction and rental business with ergonomic comfort to the operator by Anti-Vibration-System and height adjustable handles.
_______

FS 170 with Gasoline, Diesel or Electric motor – Blade-ø 20 in. (500mm) – Cutting depth 7 1/2 in. (190 mm)

Anti-Vibration system, height adjustable handles
Cutting depth adjustment by foot pedal for operators safety

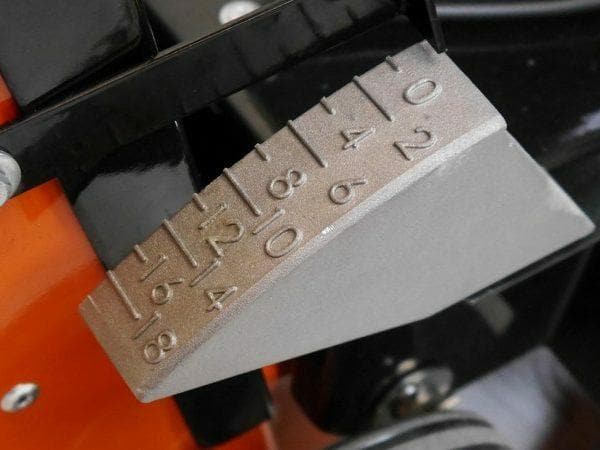

Cutting depth indicator
Front cutting guide
Parking break
Safety frame with integrated lifting frame
Big wheels for good chassis clearance
Durable V-belt drive
Maintenance free design (hot dipped galvanized chassis)

Available with Honda 13HP or Yanmar 10HP diesel engine or 400V, 5,5 KW 3-phase electric motor

Durable Poly-V belt for an optimum of power transmission

Specification

US Standard
Metric

Max Cutting depth
7 1/2 in.
190 mm

Blade diameter
20 in.
500 mm

Shaft size
1 in.
25,4 mm

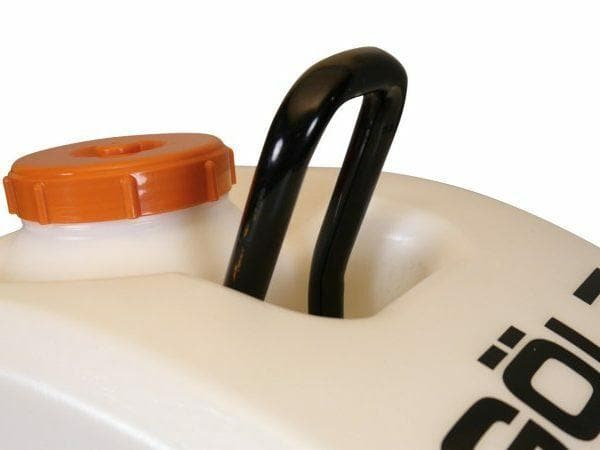

Water tank
26 1/2 qt
25 Liter

Engine
Honda GX390

Engine power (net power)
13HP/9,5kW (11,8HP/8,7kW)

Shaft speed
2.300 rpm

Feed motion
Push

Cutting depth adjustment
Foot pedal & Pneumatic Spring

Power transmission
V-Belt Kit

Hand Arm Vibrations
4,5 m/s2

Dimensions: (LxWxH)
48 in. x 24 in. x 46 in.
1.210 x 630 x 1.165 mm

Weight
265 lbs.
120 kg

Order-No.
0282 170 1000

Available with Honda 13HP or Yanmar 10HP diesel engine or 400V, 5,5kW 3-phase electric motor.
Diamond Blades:Diamond Blades for Asphalt and Concrete, please check our Diamond Tools catalogue.
