T7 Tile Saw

The T7 is the successor to the portable 710 series saw. It retains the powerful lightweight design of the previous model, while adding some improvements.
Power is now delivered from the powerful 1 HP brush motor via a gear system, instead of a belt assembly. This in turn improves the saw’s efficiency, which can be felt by the increase in torque while cutting. In addition the water delivery system and blade guard assembly has been changed to make the saw more user friendly, yet versatile. All of which are still mounted on the dependable all steel frame construction.

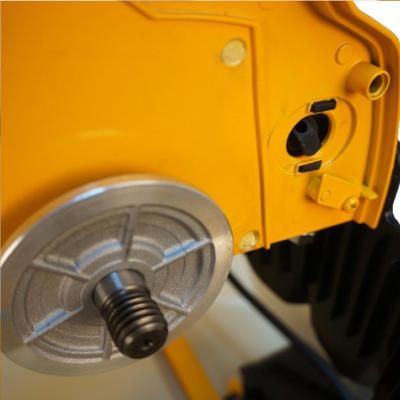

Efficient gear driven blade shaft
Rigid welded internal frame

Injected durable rubber mat

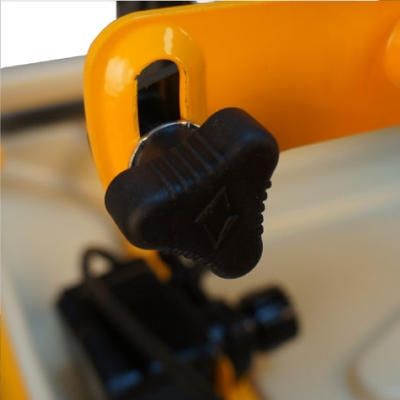

Easy access blade guard assembly

Motor
Carbon brush motor

Power
1.0 HP (0.75kW)

Voltage
115 V

Amperage
8.5 A

Rotation per minute
— RPM

Rip Cut (Max cut parallel to tile edge)
20 in (508 mm) tiles

Diagonal Cut (max cut 45 degree to tile edge)
14 in (355,6 mm) tiles

Max Cutting Depth
1.75 in (44.5 mm)

Arbor Diameter
0.625 in (15.88 mm)

Blade Shaft Rotation per Minute
600 RPM

Water Tray
ABS/PP External tray

Weight
45 lbs (20.5 kg)

Blade Guard Capacity
7 in (178 mm)
