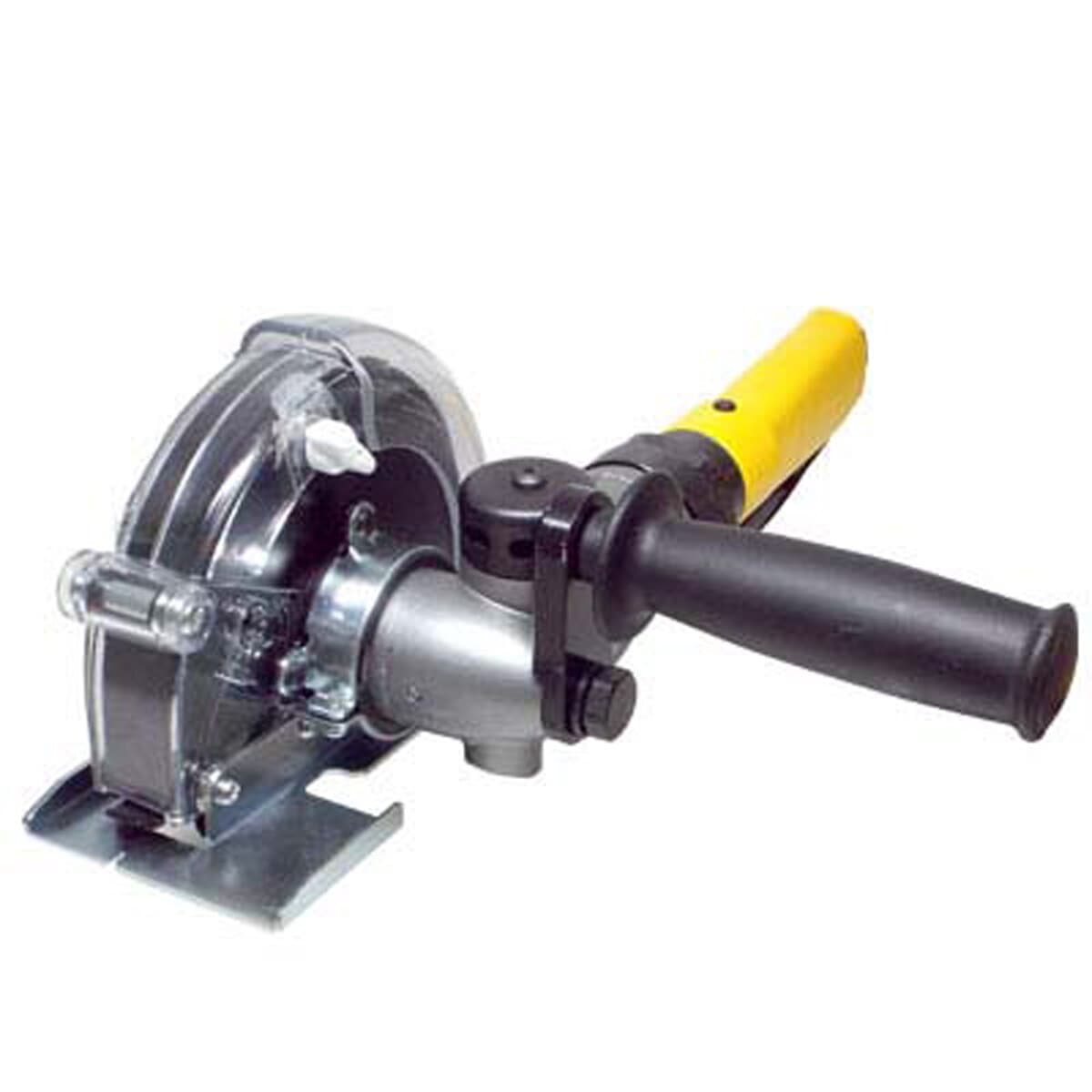

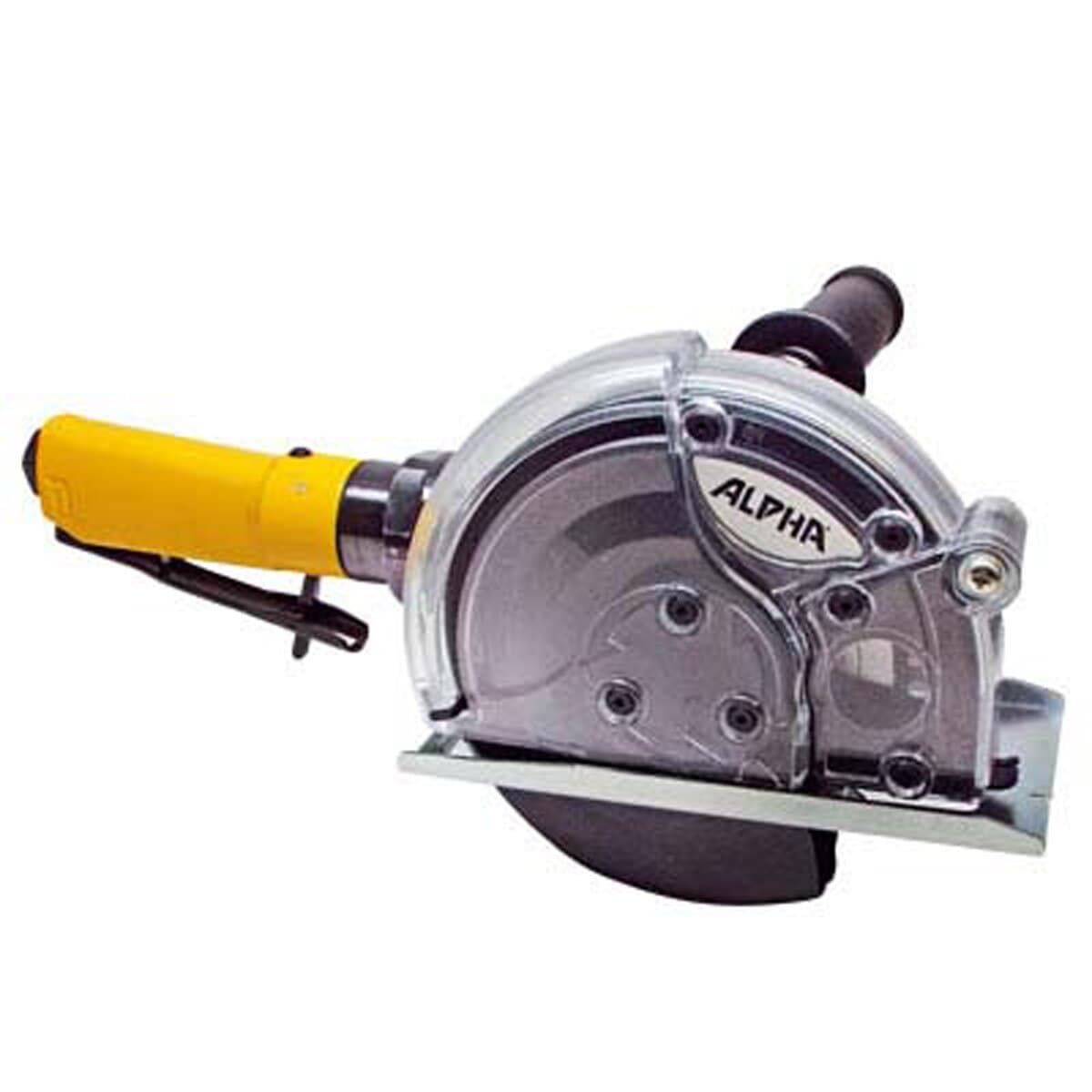

PSG-125 Metal Cutting Kit

Cutting Kit that cuts angle iron, c-channel, conduit, spiral duct, metal studs, rebar, stainless steel, aluminum plates and bars, steel palates, threaded rods, unistrut, etc.Introducing the PSG-125 Metal Cutting Kit… A unique industrial angle grinder cutting kit designed for ferrous and non-ferrous metal cutting applications with abrasive cut-off wheels or carbide blades. A safety guard, along with a base plate, eliminates the dangerous kick-back typical on hand-held grinders. Also, it minimizes sparks, debris and odor. This new system cuts angle iron, c-channel, conduit, spiral duct, metal studs, rebar, stainless steel, aluminum plates and bars, steel palates, threaded rods, unistrut as well as many other materials.
Unique industrial angle grinder cutting kit
Includes 5″ CarBite carbide blade
Safety guard and base plate eliminate dangerous kick-back
Powerful 1.4 HP motor with speed control governor
Reversible safety lever throttle
Minimizes sparks, debris and odor
Compact ergonomic aluminum body
Works on ferrous and non-ferrous metals
Cuts angle iron, c-channel, conduit, spiral duct, metal studs, rebar, stainless steel, aluminum plates and bars, steel palates, threaded rods, unistrut, etc.
Adjustable rotating exhaust
Built-in oil port for easy maintenance
Kit Contains PSG-125 and Ecoguard M with Connector
One Year Tool Warranty* (*See manual for details)
Product Details
Model 5480-1303 (PSG-125)
Air Pressure 90 PSI
Air Consumption Max 33 CFM (934L/min)
No Load RPM 12,000 RPM
Weight 4.6 lbs / 2.1 kgs
Length 11-3/4″ / 298mm
Air Inlet 3/8″ NPT
Spindle 5/8″-11
Maximum disc capacity 5″ x 1/4″ x 7/8″
Max. HP 1.4 HP
Equipment Included
PSG-125 Pneumatic Grinder 1
Ecoguard M Assembly/Connector 1
Lock Nut with 7/8″ Arbor 1
Flange 1
Spacer / T4.0mm 1
Collar 1
Pin Wrench 1
Handle Bracket 1
Hex Bolt (M12 x 16) 1
Spring Washer (M12) 1
Rubber Hose Connector 1
Side Plates & Washer Set 1
Rust Inhibitor Oil (8oz / 237ml) (AIR-008) 1

Part No.
Description

5480-1303
PSG-125 Metal Cutting Kit
