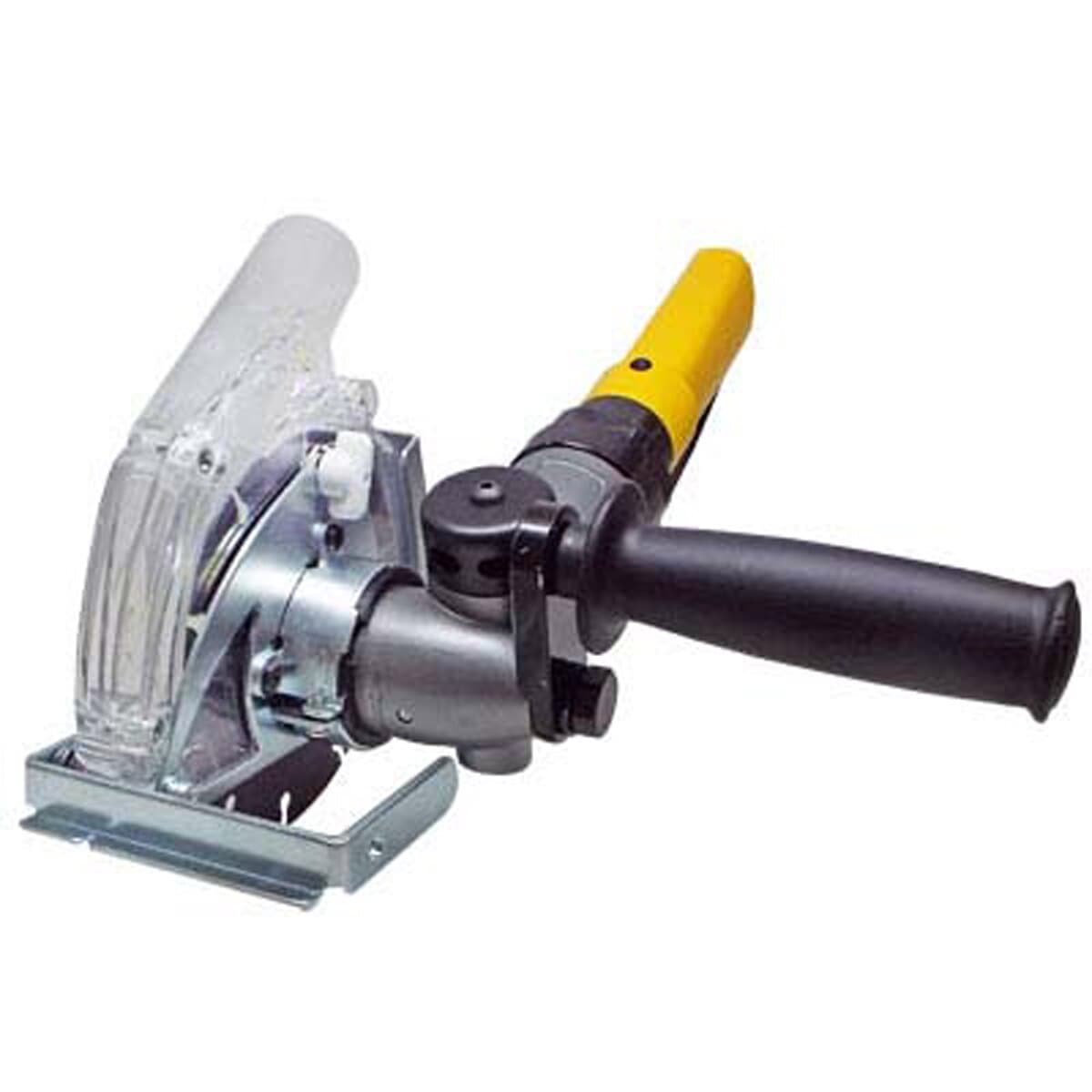

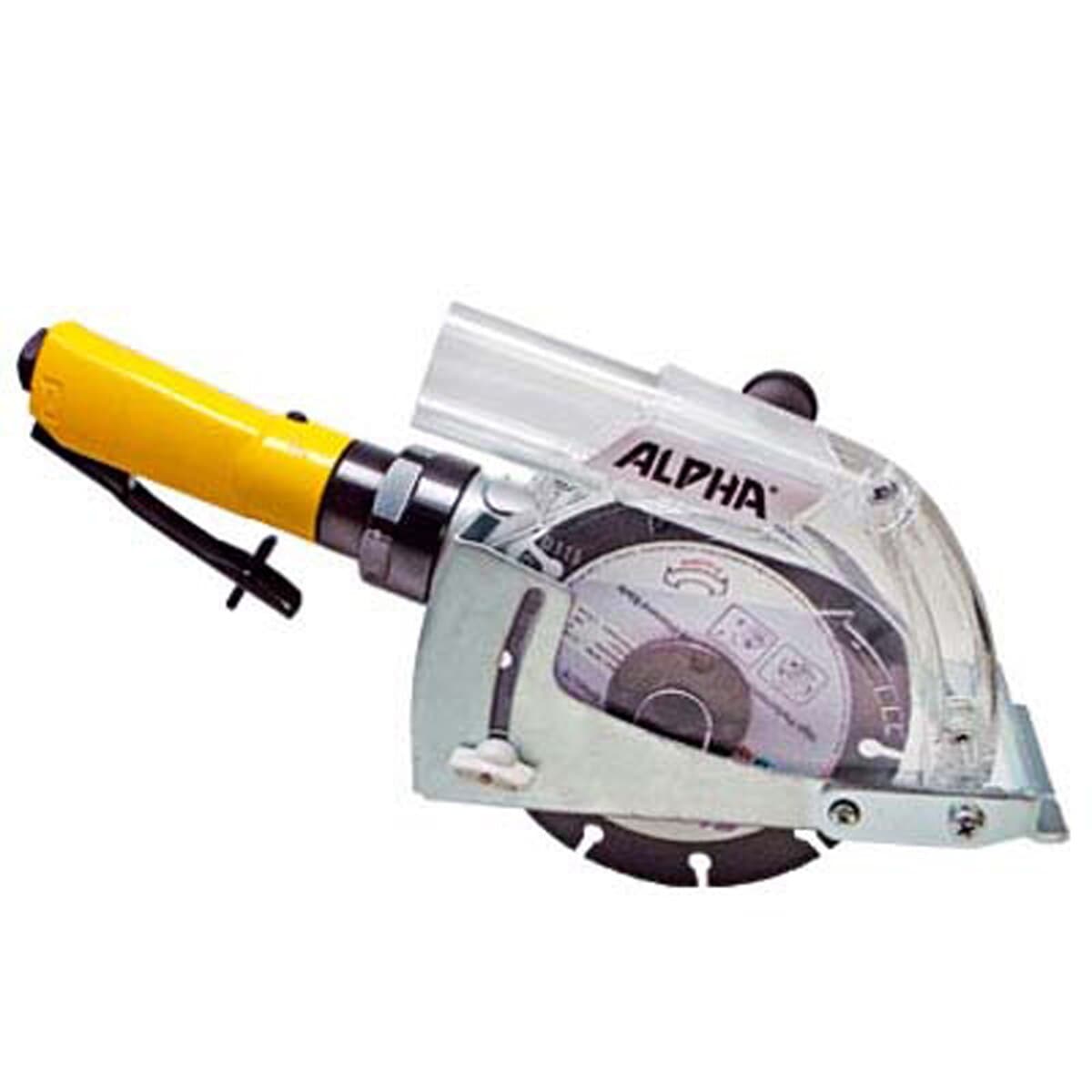

PSG-125 Diamond Cutting Kit

Dust Shroud and Masonry SawAlpha® is pleased to introduce the PSG-125 Diamond Cutting Kit. This system is recommended for virtually dust-free masonry cutting applications using a diamond blade. It fits not only standard cutting blades but also wide kerf blades for tuck pointing, crack chasing and grout removal. Also, great for curve cutting blades for sink-hole cut out applications. To keep the keep dust to a minimum, an optional water feed system is available.
Virtually dust-free masonry cutting
Fits wide kerf blades for tuck pointing, crack chasing and grout removal
Powerful 1.4 HP motor with speed control governor
Compact ergonomic aluminum body
Optional water feed system available
Reversible safety lever throttle
Two auxiliary handle positions
Adjustable rotating exhaust
Built-in oil port for easy maintenance
Kit Contains PSG-125 and Ecoguard W5 with Connector
One Year Tool Warranty* (*See manual for details)
Product Details
Model 5480-1301 (PSG-125)
Air Pressure 90 PSI
Air Consumption Max 33 CFM (934L/min)
No Load RPM 12,000 RPM
Weight 4.6 lbs / 2.1 kgs
Length 11-3/4″ / 298mm
Air Inlet 3/8″ NPT
Spindle 5/8″-11
Maximum disc capacity 5″ x 1/4″ x 7/8″
Max. HP 1.4 HP
Equipment Included
PSG-125 Pneumatic Grinder 1
Ecoguard W5 Assembly/Connector 1
Lock Nut with 7/8″ Arbor 1
Inner Flange 1
Side Handle 1
Hex Wrench (1/4″) 1
Pin Wrench 1
Handle Bracket 1
Hex Bolt (M12 x 16) 1
Spring Washer (M12) 1
Rubber Hose Connector 1
Stainless Steel Hose Band 1
Rust Inhibitor Oil (8oz / 237ml) (AIR-008) 1

Part No.
Description

5480-1301
PSG-125 Diamond Cutting Kit
