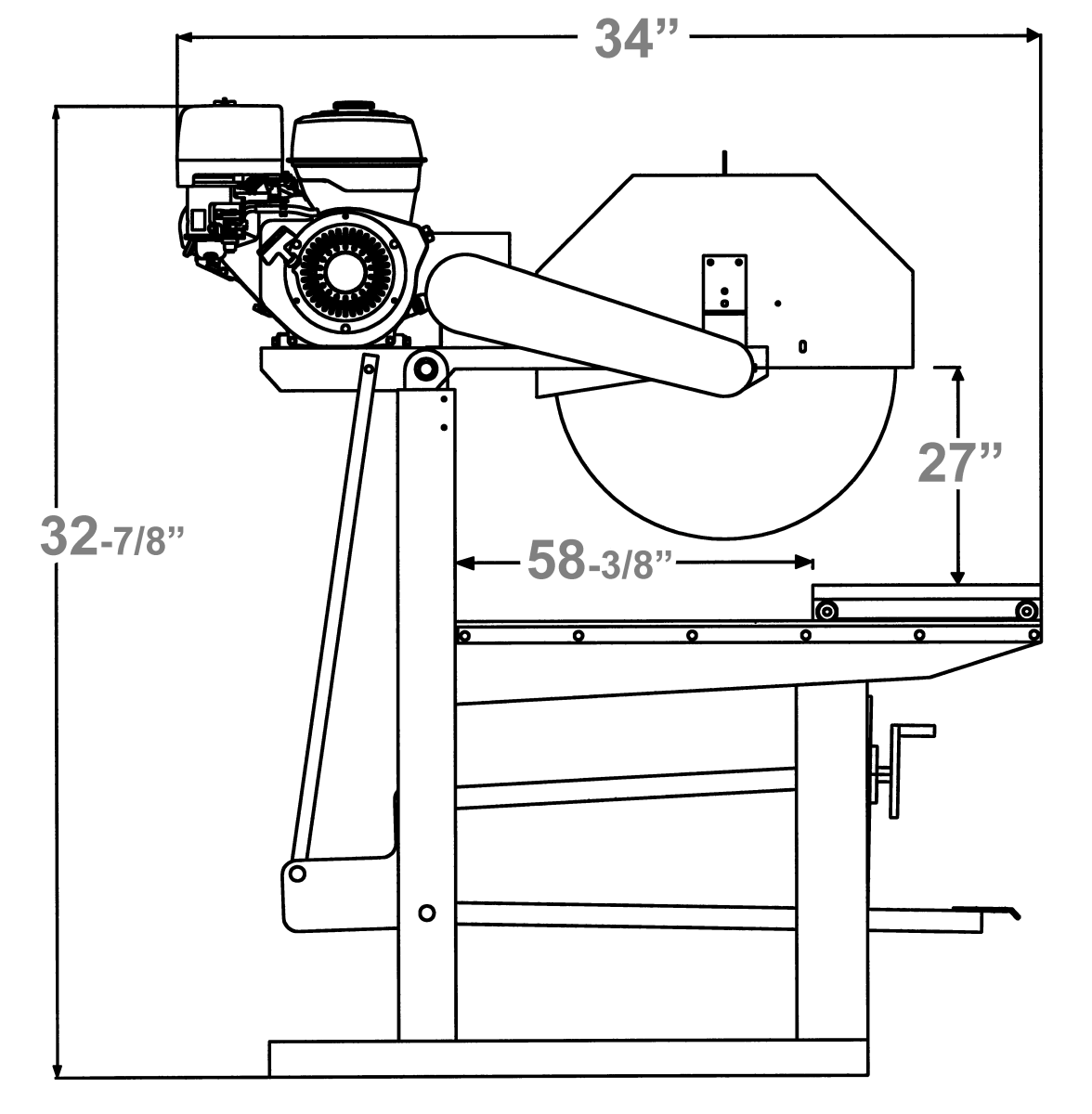

CC800M Block Saw

CC800M Block Saw is a rugged saw and designed for large applications

24″ Capacity

Gasoline and Electric Models
Features & Benefits:

24″ blade cuts a 10″ block in a single pass
Variety of power options
Stay level blade guard and enclosed blade shaft
Replaceable cart travel rails
Durable 3/16″ steel frame
Includes water pump
Easy rolling 16″ x 25″ aluminum cutting cart/tray with vulcanized rubber coated non-slip top
Large capacity, deep tapered water tray
Foot pedal controlled operating head leaves the operators hands free to guide material
Hand wheel for quick and easy blade cutting depth adjustment
Enclosed cart wheels prevent damage
Forklift opening for easy transport
2 V-belts promote efficient delivery of power to the blade
Open back design for rip cutting longer materials
Counterbalanced stay level blade guard assures the head is parallel to the cutting cart at all times

Specifications:

Maximum Depth of Cut:
8″ with 20″ blade, 10″ with 24″ blade

Arbor Diameter:
1″

Blade Shaft Bearings:
Flange block ball bearings

Blade Shaft Drive:
2 premium grip notch v-belt

Blade Raise/Lower:
Counterbalanced, spring tensioned head pivots on two 1″ flange block bearings

Blade Coolant:
Dual spray tubes, pump fed (elecZZic models), garden hose connection (gas models)

Air Filter:
3-stage cyclone (gas models)

Fuel Capacitor:
1 gallon (gas models)

High Temp Shut-off:
Included (elecZZic models)

Starter:
Recoil on gas models, capacity on electric models

Blade Capacity
Sawing Engine/Motor Make
Motor/Engine Power
Electric Start
Power Source
Part Number
Catalog Number

20″
Baldor
5 HP-1PH, 230V
No
Electric
5800540
46820

20″
Baldor
5 HP-3PH, 230V
No
Electric
5800541A
96416

20″
Baldor
5 HP -3PH, 460V
No
Electric
5800541B
18533

20″
Baldor
7.5 HP-1PH, 230V
No
Electric
5800542
47664

20″
Baldor
7.5 HP-3PH, 230V
No
Electric
5800544A
96015

20″
Baldor
7.5 HP-3PH, 460V
No
Electric
5800544B
96336

24″
Baldor
7.5 HP-1PH, 230V
No
Electric
5800543
47630

24″
Baldor
7.5 HP-3PH, 230V
No
Electric
5800545A
97240

24″
Baldor
7.5 HP-3PH, 460V
No
Electric
5800545B
97000

20″
Honda® GX270
8 HP, 14.1 torque (lbs.-ft.)
No
Gas
5800546
47024

20″
Lifan® LF177F
9 HP
No
Gas
5801107
33971

20″
Honda® GX390
11 HP, 19.5 torque (lbs.-ft.)
No
Gas
5800547
47047

24″
Honda® GX390
11 HP, 19.5 torque (lbs.-ft.)
No
Gas
5800548
47046

20″
Honda® GX390
11 HP, 19.5 torque (lbs.-ft.)
Yes
Gas
5800566
60933

24″
Honda® GX390
11 HP, 19.5 torque (lbs.-ft.)
Yes
Gas
5800567
81160
