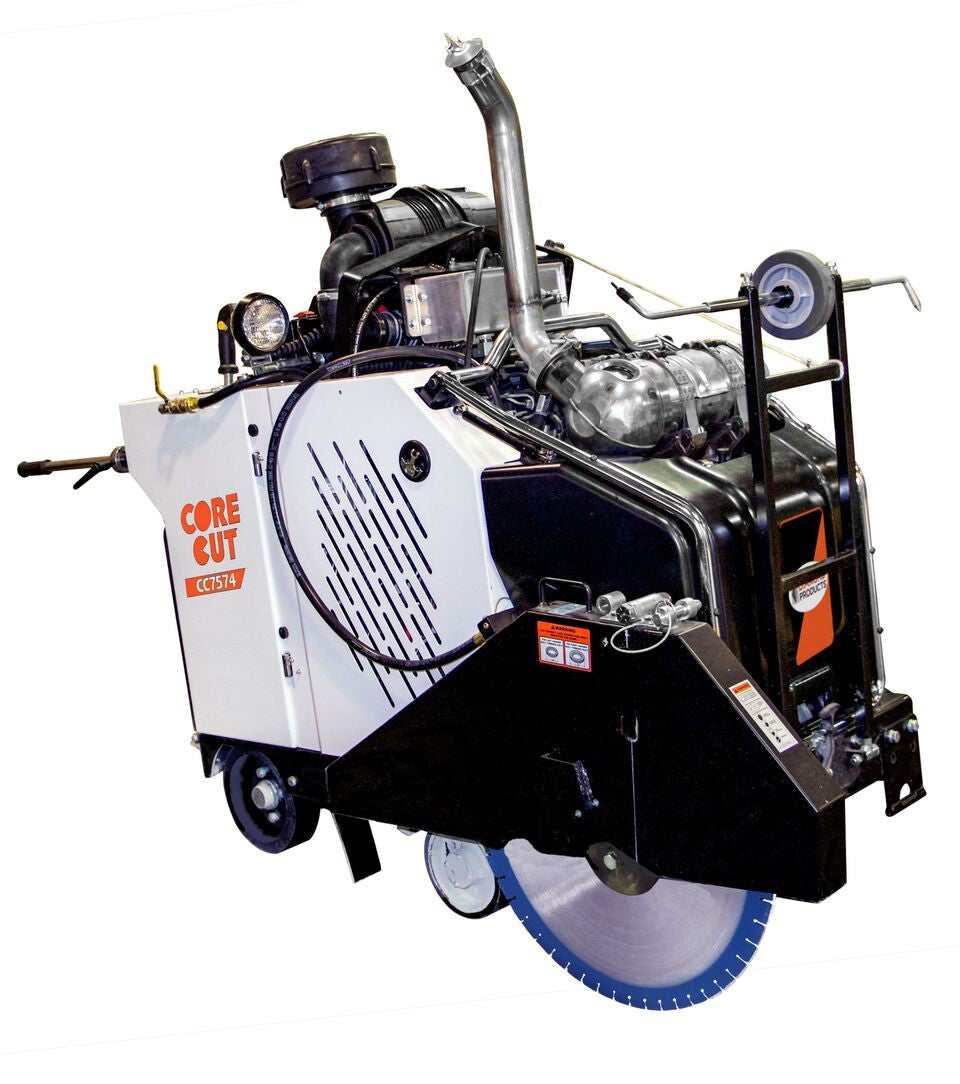

CC7574DD-P In-Line Walk Behind Saw

In-line Walk Behind Saw with Increased Production, Lower Maintenance Costs and Better Fuel Efficiency.
20”-48” Blade Capacity
 Diesel Powered
Features & Benefits:

Tier 4 Final Deutz® diesel engine
Available with enhanced clutch assembly that allows the blade to be disengaged while the engine is running (single speed only)
Easy maneuvering self propelled drive
Strongest frame on the market
Hydraulic wheel motor drive
Blade shaft gearbox-oil bath for low maintenance
4 stage air filter system
19-3/4” maximum cutting depth
Maintenance-free DVERT® diesel oxidation catalytic converter (DOC-only, no DPF).
High pressure common rail electronic fuel injection.

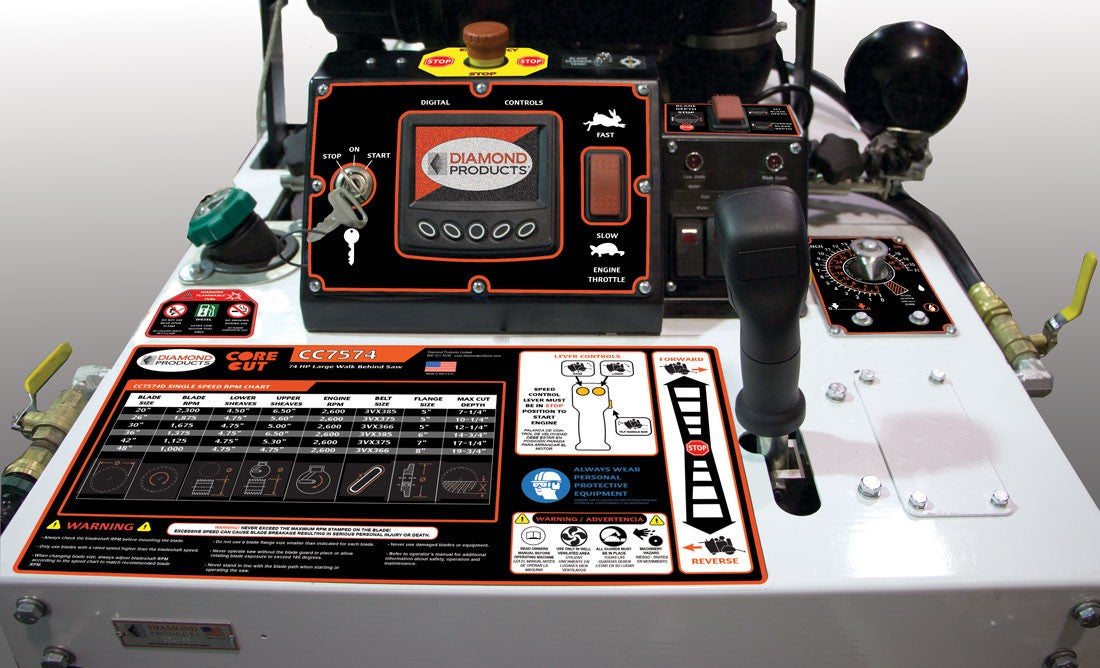

Modern computer interface engine controls 20”-48” Blade Capacity

Specifications:

Maximum depth of cut with 20” blade:
7-1/4” (5” flange)

Maximum depth of cut with 26” blade:
10-1/4” (5” flange)

Maximum depth of cut with 30” blade:
12-1/4” (5” flange)

Maximum depth of cut with 36” blade:
14-3/4” (6” flange)

Maximum depth of cut with 42” blade:
17-1/4” (7” flange)

Maximum depth of cut with 48” blade:
19-3/4” (8” flange)

Engine:
Deutz® Turbo Diesel

Engine Specs:
4 Cylinder, 3.3 Liter

Max Engine Power:
74.3HP at 2,600 RPM

Power at the Blade Shaft:
74 Horsepower

Emission Regulation:
EPA Tier 4 Final Compliant

Blade shaft diameter:
2”

Arbor size:
1” w/drive pin

Blade shaft bearings:
Multiple ball bearings in oil bath

Blade shaft drive:
20 V-belts

Blade mounting:
Right or Left

Blade raise & lower:
Electro-hydraulic pump

Blade Coolant:
Dual multi-spray tubes

Drive speed:
0-250 feet/min forward and reverse

Transmission:
Hydro pump powering dual wheel motors

Air filter:
4 stage w/restriction indicator

Fuel capacity:
9 gallons

Blade Capacity
Sawing Power Source
Sawing Engine/Motor Make
Motor/Engine Power
Speeds
Part Number
Catalog Number

20″
Diesel
Deutz® Turbo
74 HP
Single Speed
5801640
112298

26”
Diesel
Deutz® Turbo
74 HP
Single Speed
5801641
112299

30”
Diesel
Deutz® Turbo
74 HP
Single Speed
5801642
112300

36”
Diesel
Deutz® Turbo
74 HP
Single Speed
5801643
112301

42”
Diesel
Deutz® Turbo
74 HP
Single Speed
5801644
112302

48”
Diesel
Deutz® Turbo
74 HP
Single Speed
5801645
112303

30”
Diesel
Deutz® Turbo
74 HP
3-Speed (20”/26”/30”)
5801652
112310

36”
Diesel
Deutz® Turbo
74 HP
3-Speed (20”/30”/36”)
5801653
112311

42”
Diesel
Deutz® Turbo
74 HP
3-Speed (26”/36”/42”)
5801654
112312

48”
Diesel
Deutz® Turbo
74 HP
3-Speed (30”/42”/48”)
5801655
112313
