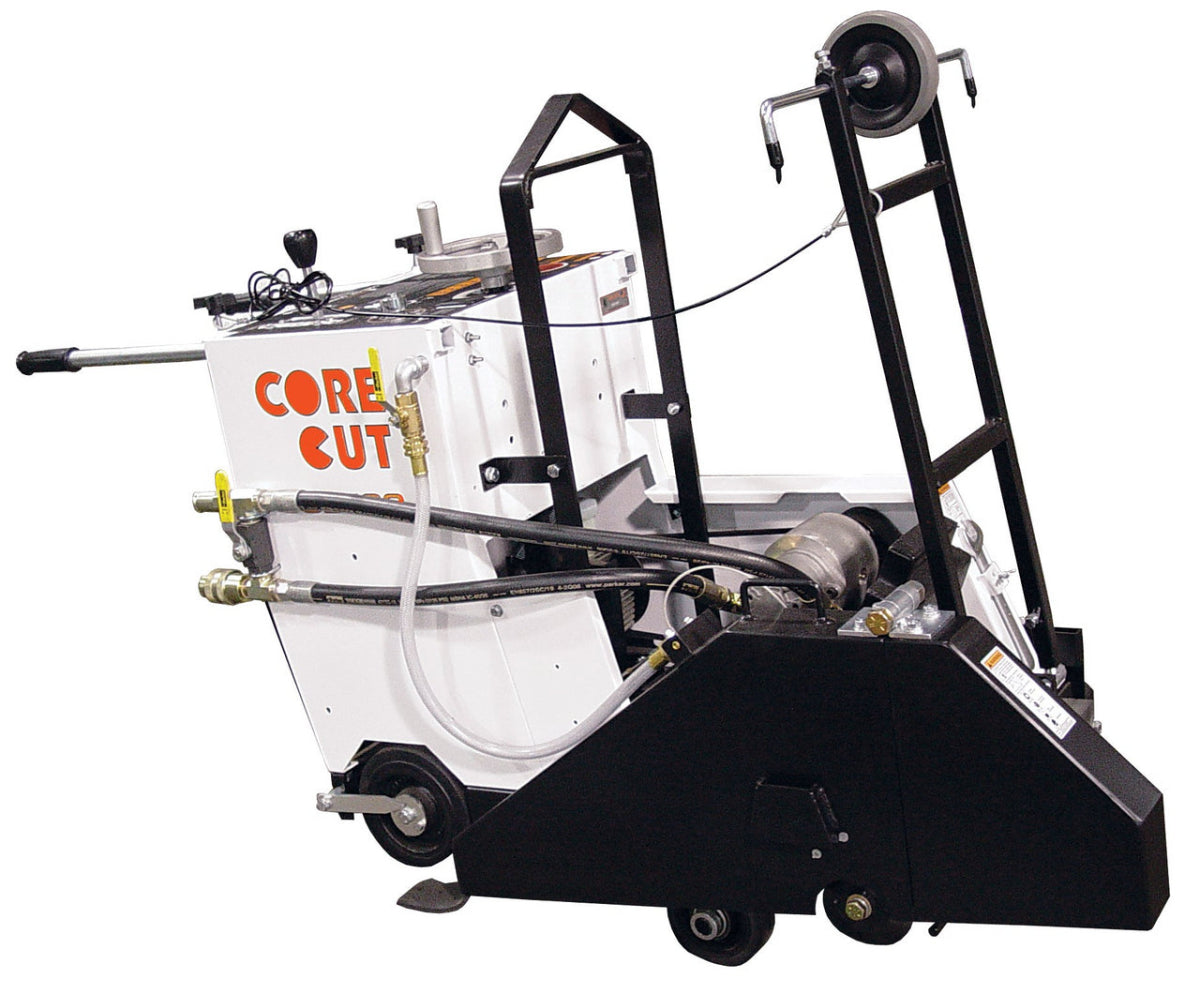

CC2500 Medium Walk Behind Saw

CC2500 Medium Walk Behind Saw delivers the Power of a Large Saw with a Compact Size

14″ – 26″ Blade Capacity

Features & Benefits:

Rigid high strength 3/16″ steel box frame with heavy bar reinforcement
2 position tilt handlebars
Push or self-propelled drive
Screw feed raise and lower with optional power raise and lower
Cyclone air filter on gas models
Positive gear drive to rear axle via Eaton hydrostatic transmission

Specifications:

Maximum depth of cut with 14″ blade:
4-5/8″

Maximum depth of cut with 20″ blade:
7-3/8″

Maximum depth of cut with 26″ blade:
10-3/8″

Blade shaft RPM:
Varies

Blade shaft diameter:
1-1/2″

Arbor size:
1″ w/drive pin

Blade shaft drive:
4 belts up to 20.8HP, 5 belt for 25HP

Blade mounting:
Right or Left

Transmission (self-propelled only):
Eaton Model 6

Drive Speed:
0-130 feet/min

Fuel Capacity (gas models):
5 gallons

Blade Capacity
Motor/Engine Power
Electric Start
Power Source
Engine/Motor Make/Model
Remote Cyclone Air Cleaner
Right or Left Hand
Part Number
Catalog Number

14″
15 HP, 230V-3PH
N/A
Electric
Leeson®
No
N/A
5800400A
48413

14″
15 HP, 460V-3PH
N/A
Electric
Leeson®
No
N/A
5800400B
99980

20″
15 HP, 230V-3PH
N/A
Electric
Leeson®
No
N/A
5800401A
98001

20″
15 HP, 460V-3PH
N/A
Electric
Leeson®
No
N/A
5800401B
93694

26″
15 HP, 230V-3PH
N/A
Electric
Leeson®
No
N/A
5800402A
94379

26″
15 HP, 460V-3PH
N/A
Electric
Leeson®
No
N/A
5800402B
94409

14″
20.8 HP, 35.6 torque (lbs.-ft.)
Yes
Gas
Honda® GX630
Yes
N/A
5800406
48418

20″
20.8 HP, 35.6 torque (lbs.-ft.)
Yes
Gas
Honda® GX630
Yes
N/A
5800407
47164

26″
22.1 HP, 35.6 Torque (lbs.-ft.)
Yes
Gas
Honda® GX630
Yes
N/A
5800408
48419

14″
22.1 HP, 35.6 Torque (lbs.-ft.)
Yes
Gas
Honda® GX690
Yes
N/A
5801520
29637

20″
22.1 HP, 35.6 Torque (lbs.-ft.)
Yes
Gas
Honda® GX690
Yes
N/A
5801521
29638

26″
22.1 HP, 35.6 Torque (lbs.-ft.)
Yes
Gas
Honda® GX690
Yes
N/A
5801522
34013

14″
25 HP-25 GPM @ 2000 PSI
Yes
Hydraulic
Webster®
No
N/A
5800489
48426

20″
25 HP-25 GPM @ 2000 PSI
Yes
Hydraulic
Webster®
No
N/A
5800490
48427

26″
25 HP-25 GPM @ 2000 PSI
Yes
Hydraulic
Webster®
No
N/A
5800491
48428

14″
25 HP, 41.2 Torque (lbs.-ft.)
Yes
Gas
Kohler® Command CH742
Yes
N/A
5800597
79036

20″
25 HP, 41.2 Torque (lbs.-ft.)
Yes
Gas
Kohler® Command CH742
Yes
N/A
5800598
79037

26″
25 HP, 41.2 Torque (lbs.-ft.)
Yes
Gas
Kohler® Command CH742
Yes
Right Hand
5800599
78816
