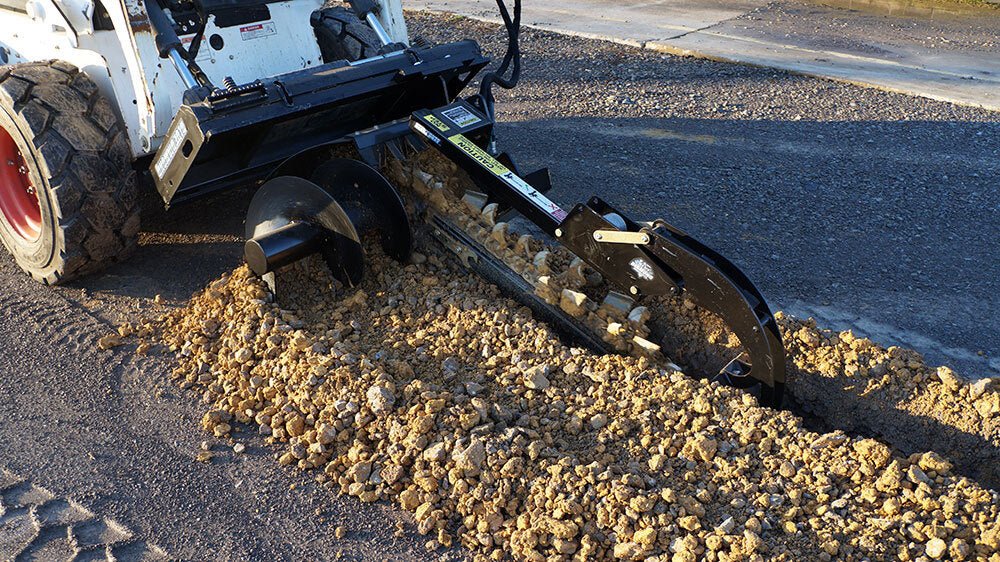

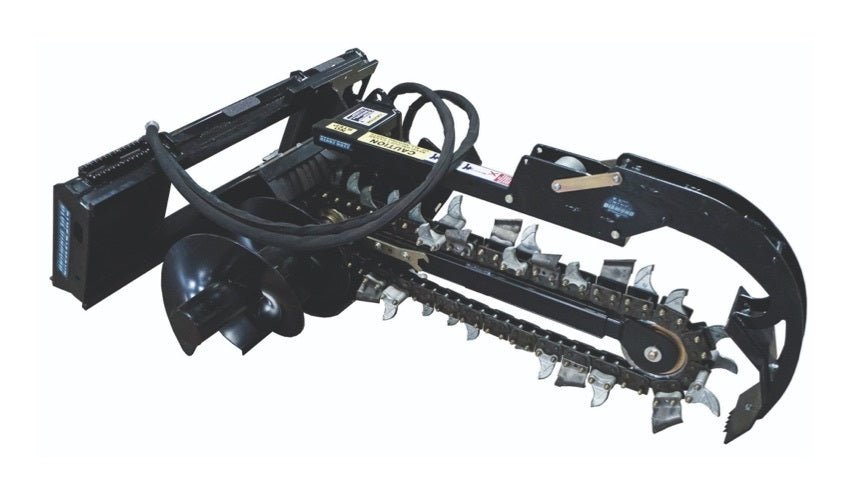

Blue Diamond® Skid Steer Trencher

This extremely durable Blue Diamond Skid Steer Trencher has many Features that make it a more productive unit than our competitors.  Also available in high flow

The extended auger carries the dirt further from the trench to prevent it from falling back in. The self-adjusting crumber brings any residual dirt back to the chain to be removed from the trench for an immaculate finish. Rental Recommended.

Features

Extended auger
Adjusting foot to keep trench depth consistent
Depths: up to 36″ or 48″
Cut widths: 4″, 6″, 8″, 10″, and 12″
Chain types: dirt, rock, and combo
Spring-loaded, self-adjusting crumber for sweeping the trench clean
Manual adjusting side shift
Side auger to prevent dirt falling back into the trench
Eaton drive motor

TRENCHER MANUAL
TRENCHER SPEC SHEET

PART NUMBER
MODEL
WEIGHT

131110
Trencher, 36” Depth, 4” Dirt Chain
390 lbs.

131115
Trencher, 36” Depth, 6” Dirt Chain
575 lbs.

131120
Trencher, 36” Depth, 8” Dirt Chain
585 lbs.

131125
Trencher, 36” Depth, 4” Combo Chain
697 lbs.

131130
Trencher, 36” Depth, 6” Combo Chain
780 lbs.

131135
Trencher, 36” Depth, 8” Combo Chain
780 lbs.

131140
Trencher, 36” Depth, 4” Rock Chain
751 lbs.

131145
Trencher, 36” Depth, 6” Rock Chain
751 lbs.

131150
Trencher, 36” Depth, 8” Rock Chain
751 lbs.

131210
Trencher, 48” Depth, 6” Earth Chain
1,120 lbs.

131215
Trencher, 48” Depth, 8” Earth Chain
1,120 lbs.

131220
Trencher, 48” Depth, 10” Earth Chain
1,120 lbs.

131225
Trencher, 48” Depth, 12” Earth Chain
1,120 lbs.

131230
Trencher, 48” Depth, 6” Combo Chain
1,075 lbs.

131235
Trencher, 48” Depth, 8” Combo Chain
1,120 lbs.

131240
Trencher, 48” Depth, 10” Combo Chain
1,120 lbs.

131245
Trencher, 48” Depth, 12” Combo Chain
1,120 lbs.

131250
Trencher, 48” Depth, 6” Rock Chain
1,075 lbs.

131255
Trencher, 48” Depth, 8” Rock Chain
1,120 lbs.

131260
Trencher, 48” Depth, 10” Rock Chain
1,120 lbs.

131265
Trencher, 48” Depth, 12” Rock Chain
1,120 lbs.

131005
Trencher Mount Skid Steer 47 1/8″ Wide
146 lbs.

131006
Trencher Mount, Wide Frame Side Shift 73 3/4″ Wide
200 lbs.

131300-HF
Trencher, High Flow, 60” Depth, 6” Combo
1,020 lbs.

131305-HF
Trencher, High Flow, 60” Depth, 8” Combo
1,040 lbs.

131310-HF
Trencher, High Flow, 60” Depth, 12” Combo
1,080 lbs.
