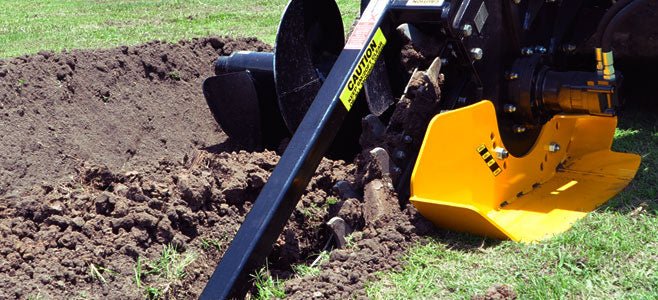

Bigfoot Trencher – 1.2 – 3.5T

Package Price Includes Hoses, Quick Disconnects, & Crumber Bar-Purchase Mount Separately

Note: Need Make and Model of Machine

Bigfoot Trenchers For Skid Steer Loaders & Backhoes  1.2 – 3.5T.  Bigfoot Trencher is also available in the up to 4.5 Tons and Mini.

Digga’s bigfoot trencher for skid steer loaders & excavators features an adjustable depth control foot which ensures the operator trenches at a set depth at all times.Three different chain options are also available for trenching in different ground conditions from general earth, to rocky ground, concrete, asphalt, and even frozen ground. Our trenchers are manufactured in-house to the highest industry quality, ensuring reliability and performance with the peace of mind you expect from a Digga product.Our trenchers are the most user friendly on the market; allowing the crumber bar to start in the trench and eliminating the need for the operator to get out of the machine to reset the crumber bar (patent pending). Our unique design foot can be seen from the cab to allow the operator to see when the trencher is in the correct trenching position. A complete trenching solution for a cleaner trench helping you increase your efficiency and productivity.
FEATURES

Headstart Crumber System (patent pending)
Adjustable Skid Foot to maintain constant digging depth
Skid Foot is visible from the cab
Frame can be side shifted for digging close to permanent structures
3 different Chain options, Earth, Combo, and Diggatac
Industry Leading Warranty

IDEAL USE & MACHINE SUITABILITY

Pipe laying for irrigation, underground power and communications, road repairs, and general construction
Excavators up to 4.5 ton, skid steer loaders, mini machines

SPECS
900

CUTTING DEPTH
UP TO 36″

CUTTING WIDTHS
4″ / 6″ / 8″

FOOT DEPTH PRESETS
24″ / 30″ / 36″

RECOMMENDED FLOW
13-25 GPM

MOTOR TYPE
2K BELL EATON

MAX PRESSURE – DO NOT EXCEED
3500 PSI @ 16 GPM

MAX FLOW – DO NOT EXCEED
25 GPM @ 2900 PSI

MAX CONTINUOUS POWER
34 HP

LENGTH
76″

HORIZONTAL HEIGHT
26″

WIDTH
48″

WEIGHT
575 LBS
