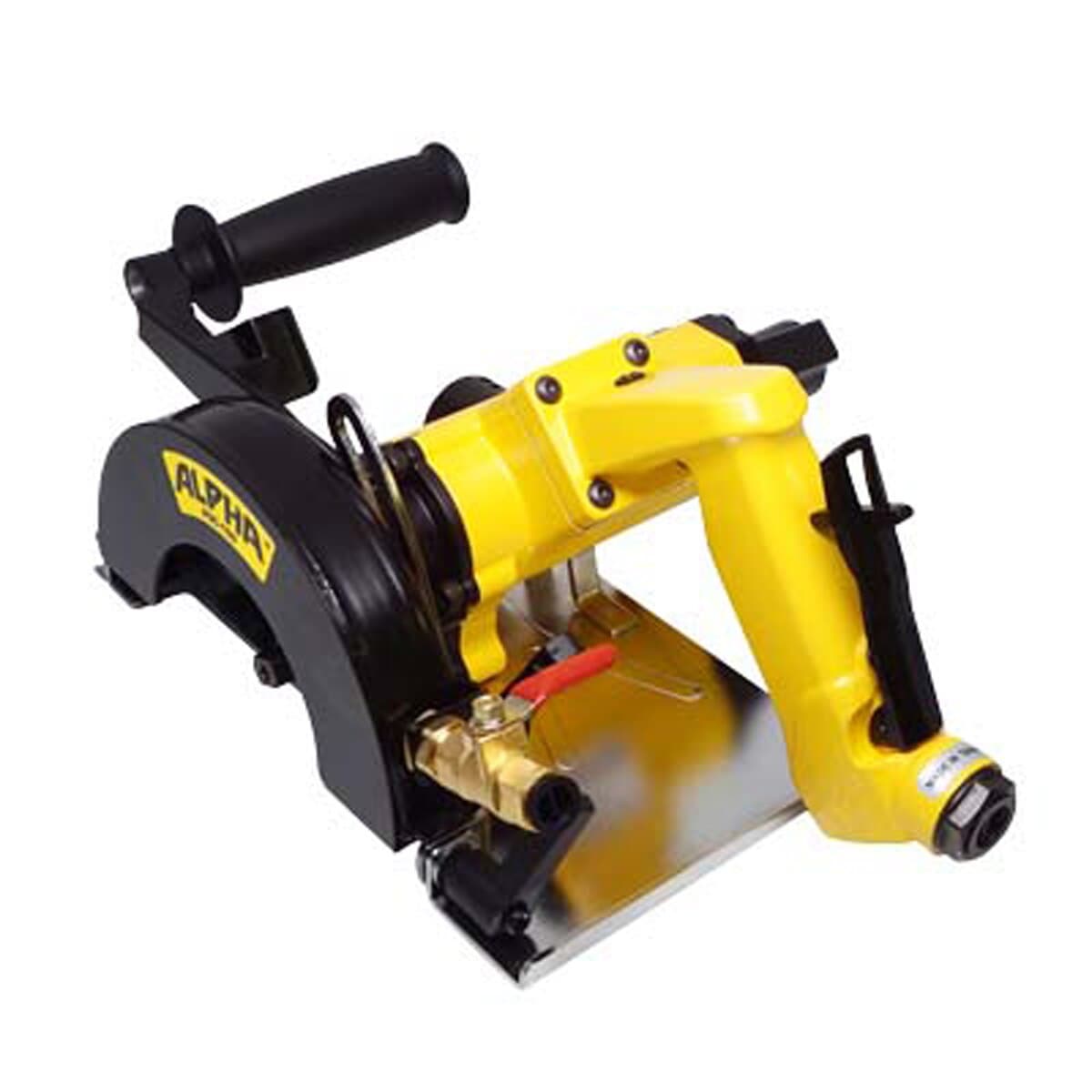

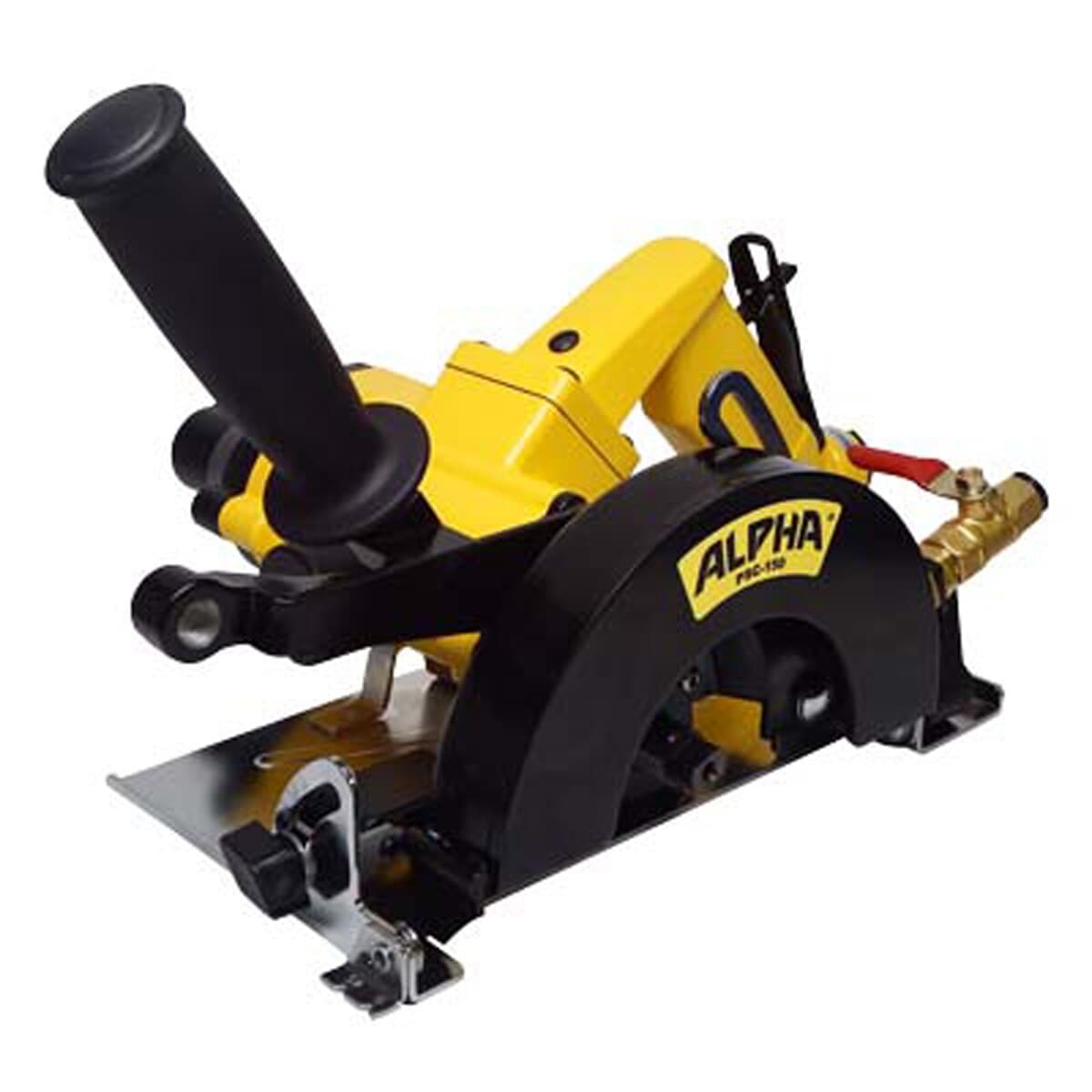

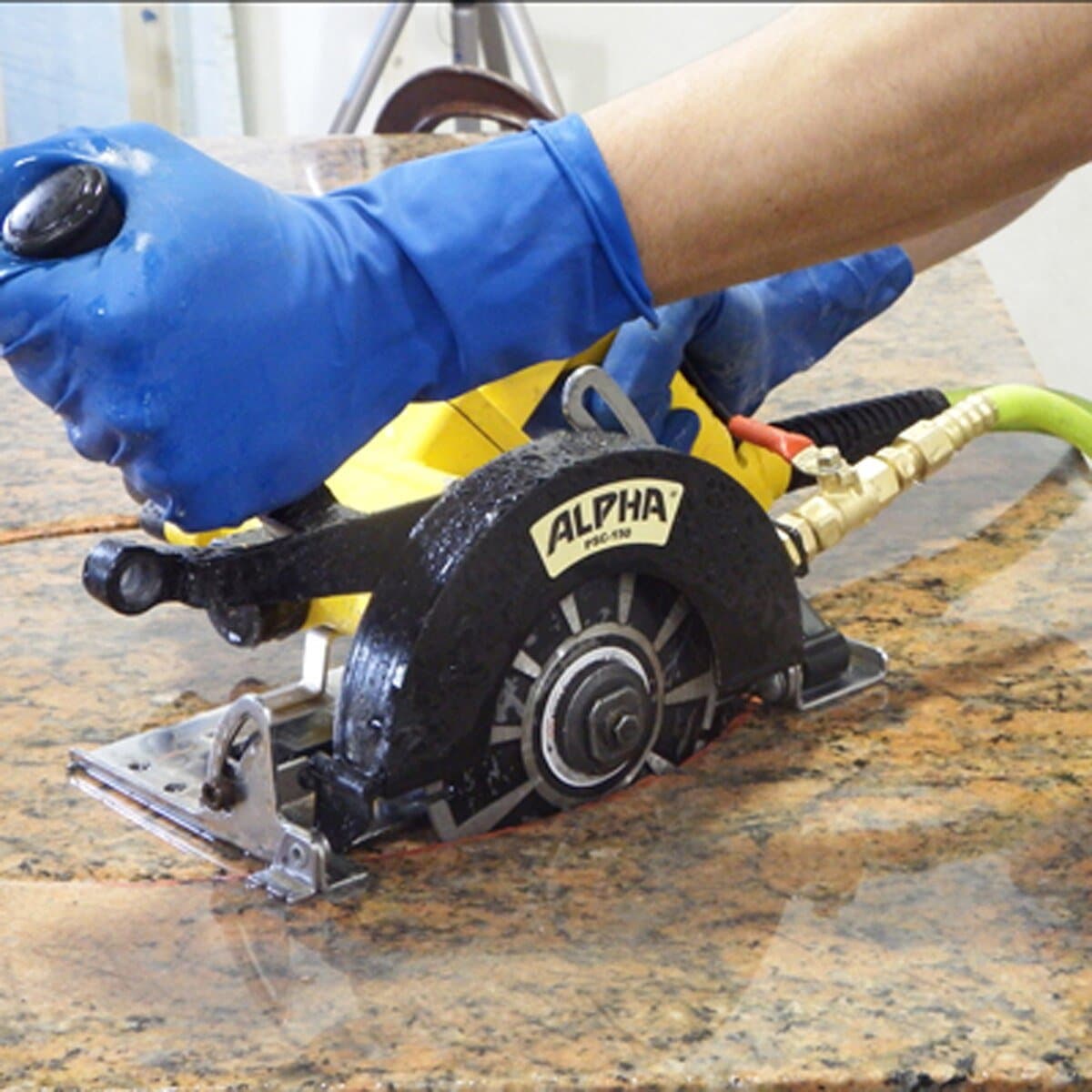

Alpha PSC-150 Pneumatic Stone Cutter

Powerful Pneumatic Stone Cutter for Industrial Applications
Looking for this great saw but in a full Rail System Saw try Alpha PSC-150 Miter Cutting Rail Saw System
Alpha® is excited to introduce a new industrial quality pneumatic stone cutter, called the PSC-150, which is equipped with a 2 hp motor, with a speed governor in the motor that regulates the air consumption according to the torque needed for the application. This regulation includes producing enough torque to cut 1-1/4″ (3cm) stone slabs in one pass. In addition, Alpha® recognized the need for an industrial quality portable stone cutter that is capable of miter cutting of 1-1/4″ (3cm) materials with ease, so that any stone fabricator can use it when miter cuts are required, without time-consuming setup. Since it is a pneumatic powered motor, you can save the repair and maintenance costs of electric stone cutters when sink-hole cutting and groove-cutting for rodding applications. Alpha® offers a carriage that retrofits on the Alpha® Guide Rail System to support the application of making precise miter cuts for the perfect lamination. The PSC-150 offers kink-free water and air hoses to improve the maneuverability of the stone cutter. The flexibility of the hoses helps reduce operator fatigue and improves the operation. To ensure a long maintenance interval, we also recommend using the manifold system that comes with a regulator and filter to catch the debris and moisture delivered by compressed air. The Alpha® PSC-150 comes with an Eclipse II 6″ blade which is the recommended turbo blade for granite and engineered stone. It can utilize a variety of consumables including the Alpha® Katana 6″ for porcelain panels and slabs, Hot-Rod 4″ for 1/4″ steel rods and 1/8″ fiber glass rods. For marble applications, a Libero 5″ blade is recommended since most marble slabs are 3/4″ (2cm) thick or less.
Powerful 2hp Motor; Can Be Used Wet or Dry! Low Maintenance; Produces Precise Miter Cuts!
Features

2 HP Pneumatic Powered Motor with Speed Governor
Capable of Miter Cutting 1-1/4″ Material With Ease
Kink-Free Water and Air- Hoses for Easy Maneuverability and Reducing Operator Fatigue
Great For Sink-Hole Cutting, Groove Cutting and Rodding Applications
Comes With an Eclipse II 6″ Blade and a bottle of Rust Inhibitor Oil
Can Be Used Wet or Dry
One Year Warranty* (*See manual for details)

Product Details

Model PSC-150
Air Pressure 90 PSI
Air Consumption Min 32 CFM / 1HP*
Air Consumption Max 48 CFM / 2HP
No Load RPM 8,500 RPM
Air Inlet 3/8″ NPSM
Water Inlet 1/4″ BSPP
Arbor 7/8″ / 22mm
Max. HP 2.0 HP
Cutting Disc Diameter 6″ / 150mm
Note: *To control the amount of CFM required, use the reduced flow air inlet fitting 3001-0084

Equipment Included

Flanges 3
Bolts (M6X30 Left) / (M6x20 Left) 2
Side Handle 1
Combination Wrench (9mm) 1
Hex Wrench (5mm) 1
Open End Spanner Wrench (22mm) 1
Air Hose (15ft / 4.5m) 1
Water Hose (15ft / 4.5m) 1
Rust Inhibitor Oil (8oz / 237ml) (AIR-008) 1
Alpha® Eclipse II 6″ Blade (DEE006) 1

Part No.
Size
Thickness
Maximum RPM
Arbor(s)
Recommended For
For Use On
Description

PSC-150
6″

7/8″
Granite/Eng.Stone

Pneumatic Stone Cutter

DEE006
6″
2.1mm
10,100
7/8″, 5/8″,◊

Stone Cutter/Angle Grinder

AIR-008

Pneumatic Tools

Rust Inhibitor Oil 8oz (237ml)

// // //
