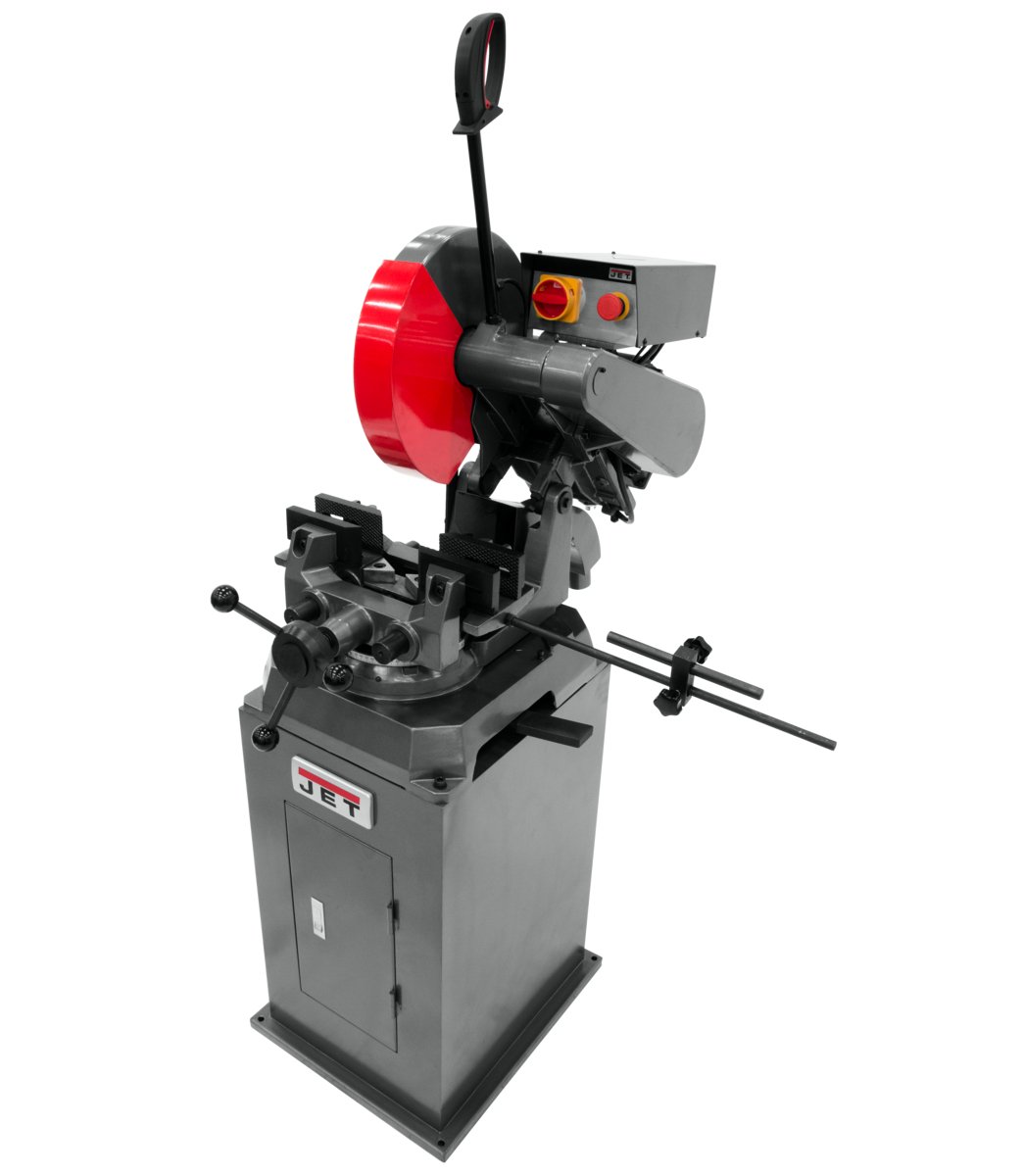

Abrasive Cut-Off Saw 3PH 230V/460V | AB-14

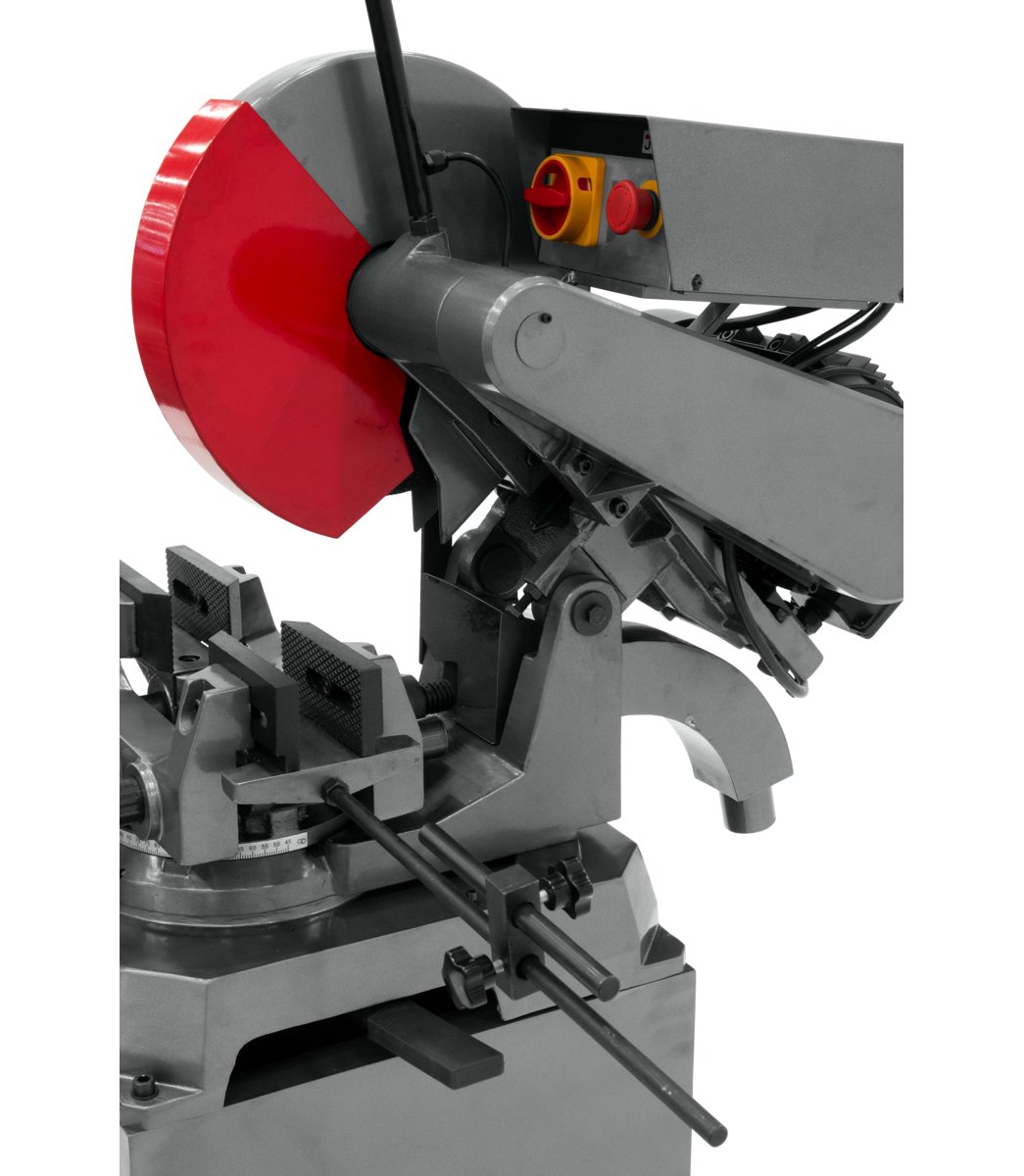

JET Abrasive Saws define durability. The casted head reduces vibration and delivers precise cutting for years. The spring loaded whole hand trigger makes the cutting action smooth, and the cast blade guard keeps operators safe.

Cast iron wheel guard

CSA/CUS Certified

Dust collection hook-up on spark arrester

Following strict guidelines and electrical requirements, these JET saws are CSA/CUS certified

Ground vise plates for extra grip

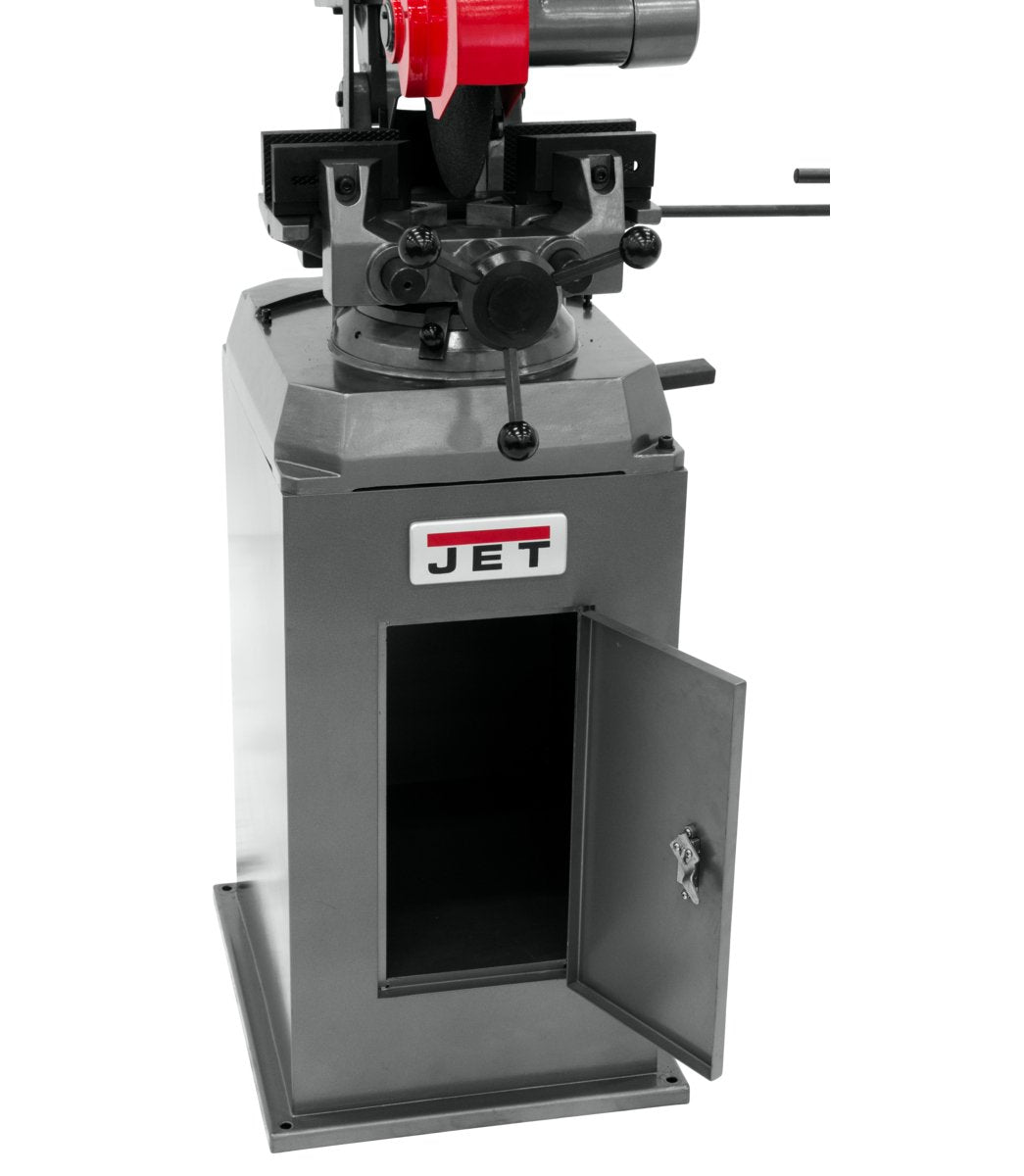

Heavy Duty Steel Cabinet, providing stability and reducing vibration .

Indexed position locks for quick angle adjustment at 90° and +/- 45°

Spark arrester/spark guide for safety

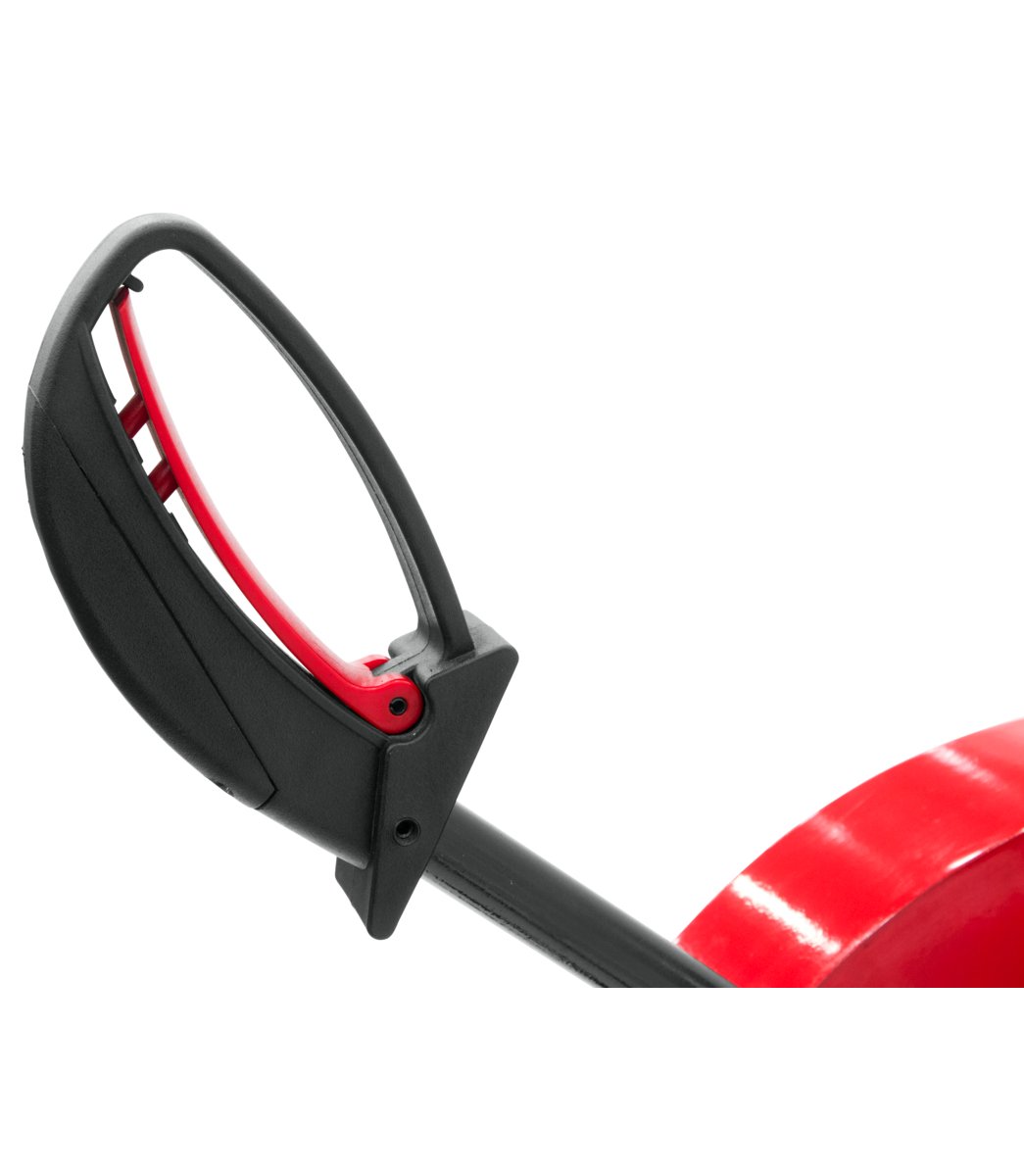

Whole hand trigger switch

Specs

More Information

Stock Number
414245

Gross Weight (Lbs)
563

Maximum Vise Opening (In.)
5.7

Motor (HP)
5HP, 230/460V, 3Ph

Net Weight (Lbs.)
396

Overall Dimensions (L x W x H) (In.)
43.3 x 20.9 x 71.3

Prop 65
Cancer and Reproductive Harm

Solid Rectangle at 45 Degrees (In.)
3.5 x 3.9

Solid Rectangle at 90 Degrees (In.)
3.1 x 4.7

Solid Round at 45 Degrees (In.)
4.1

Solid Round at 90 Degrees (In.)
4.7

Solid Square at 45 Degrees (In.)
3.5 x 3.5

Solid Square at 90 Degrees (In.)
4.1 x 4.1

Style (Type)
Abrasive Saw
