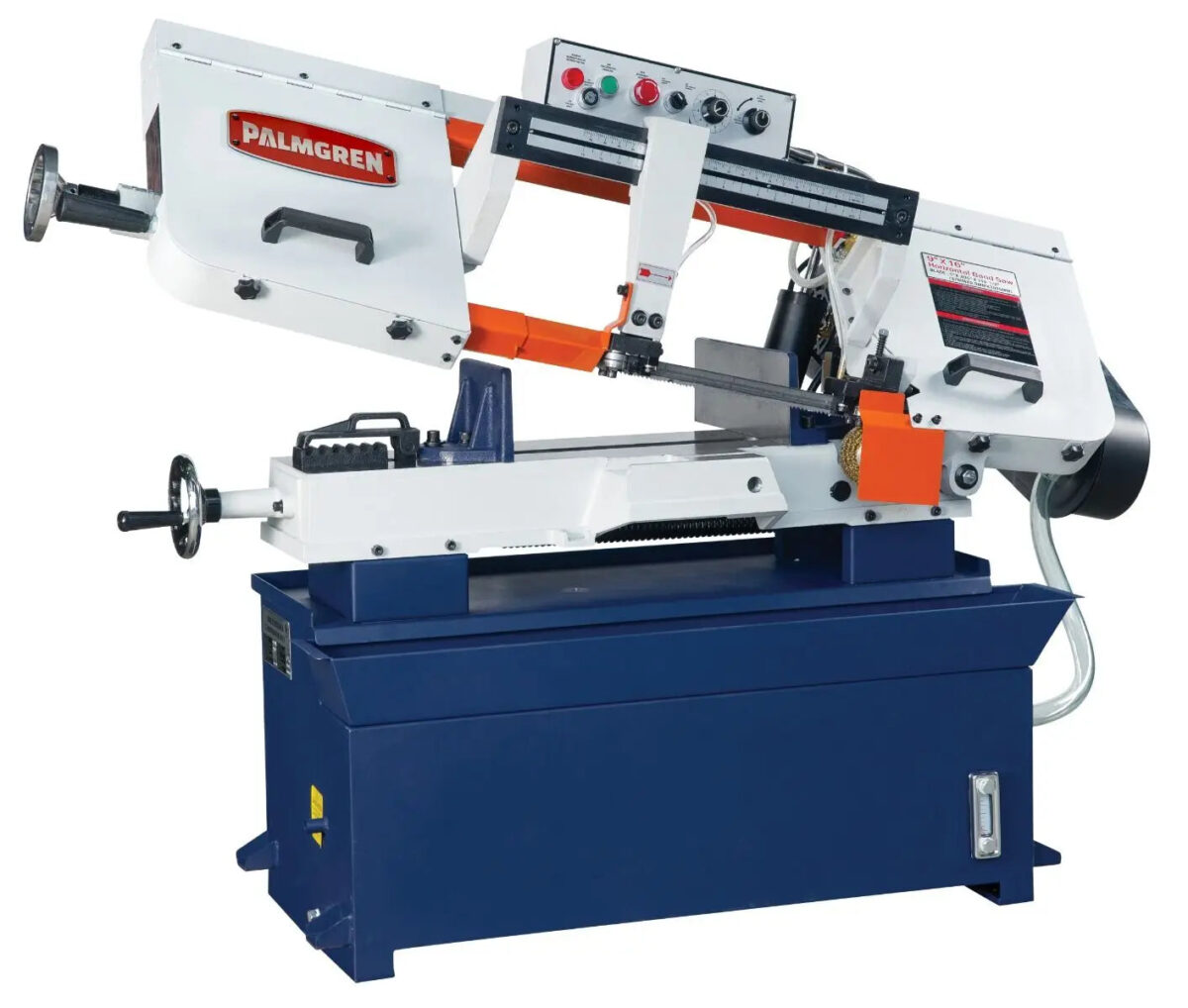

9×16 Variable Speed Horizontal Band Saw

Performance and value describe Palmgren’s 9” x 16” horizontal band saw.
This general purpose cutoff saw is built to deliver fast, accurate cutting on all types of materials. Heavy duty cast iron and steel construction of the saw head and base provide full blade support eliminating vibration and deflection. With more standard features designed to provide maximum performance, greater accuracy and more economical operation.

Step pulley drive train with 4 speed settings to cover all your sawing applications
Heavy duty transmission utilizes hardened and ground gears operating in an oil bath providing smooth, quiet positive surface feet per minute to the blade
Variable hydraulic saw head feed delivers fast, accurate cuts while extending blade life
Blade tension indicator with large hand wheel to ensure proper blade tensioning
Adjustable parallel ball bearing and carbide blade guides provide maximum support and ensure square, accurate cuts
Flood coolant system with the coolant fed through the blade guides to maximize cooling and cleaning of chips from the blade
Blade brush to aid in the removal of chips from the blade
Quick acting vise allows for fast, secure clamping of the workpiece
Conveniently located operating controls with emergency stop switch and keyed power lock out
Auto shut off at end of the cut


Specifications

AMPS
16.0 / 8.0

Band Saw Type
Horizontal

Blade Length
119-1/2″

Blade Width
1″

Blade Thickness
0.035″

Cold Saw and Band Saw Saw Type
Manual

Country of Origin
TW

Cutting Amount Setting
45°

Miter Capacity
45°

Model Number
83314

Motor HP
1.5 HP – 115/230V – 1PH – 60Hz

Optional Accessories
Item #9683333 Replacement Blade – Bi-Metal, 1″ x 0.035″ x 5-8 TPI

RPM
1720

UPC
726896833149

Unit of Measure
EA

Product Height (in)
43 in

Product Length (in)
71 in

Product Width (in)
30 in

Product Weight (lbs)
704 lbs

Master Pack Height (in)
43.5 in

Master Pack Width (in)
67 in

Master Pack Length (in)
23 in

Master Pack Weight (lbs)
704 lbs
