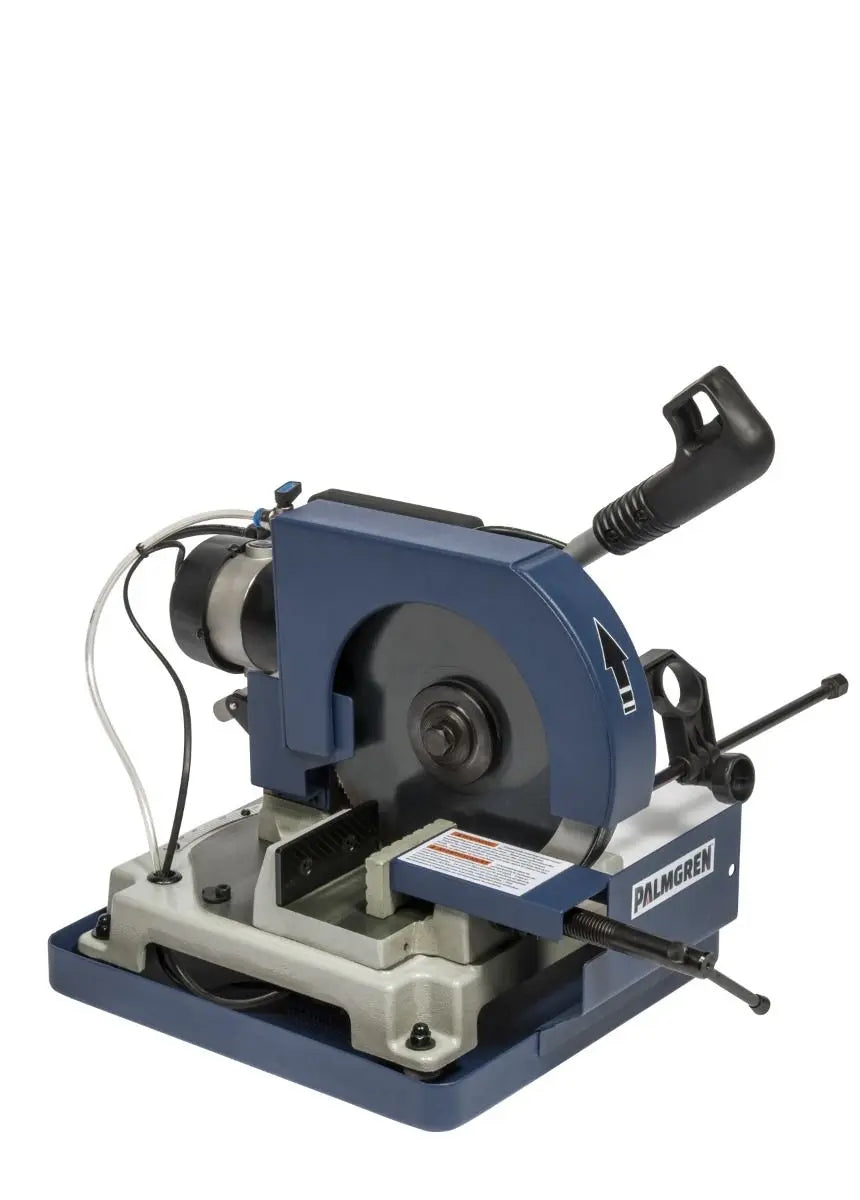

9″ Bench Top Cold Saw

Palmgren’s smallest cold saw is a lightweight bench model that can be easily moved to various workstations to complete cutting operations throughout the shop or on job sites.
With its durable cast iron construction, this cold saw can cut small solids, tubing and structural shapes fast, with a smooth, mill-like finish.

Miter cuts from 0° to 45° to the left
Bronze worm gear and hardened ground worm screw gear box in an oil bath
Control handle with safety spring loaded trigger switch to start or stop the machine
Equipped with variable speed inverter delivering a broader range of speeds
Fully enclosed blade guard
Coolant system
Manual vise
Adjustable work stop

Cold Saw and Band Saw Saw Type
Manual

Country of Origin
TW

Cutting Angle
0/45°

Cutting Angle Adjustment
Manual

Feed
Manual

Machine Weight
44

Motor HP
2

Overall Dimensions (LxWxH)
17-3/4″ x 13-1/4″ x 17-3/4″

Phase
Single

Round Material Max. 0 Degrees
2-3/8″

Round Material Max. 45 Degrees
2-3/8″

Saw Blade Diameter
9″

Sawing Type
Vertical Band Saws

Square Max. 0 Degrees
2-3/8″ x 2-3/8″

Square Max. 45 Degrees
2-3/8″ x 2-3/8″

Voltage
115

Warranty
3 Year

UPC
726896831503

Unit of Measure
EA

Product Height (in)
15.2

Product Length (in)
18.7

Product Width (in)
16.5

Product Weight (lbs)
47.3

Manual
