3000B Table Saw – 7.5HP 3PH 230/460v 50″ RIP with Accu-Fence

3000B Table Saw  with a push-button arbor lock for rapid blade change and quick-release riving knife lever for hassle-free riving knife changes
The PM3000B brings heavyweight performance and patented innovations to the 14-inch table saw arena. The riving knife rises and lowers with the blade, substantially reducing kickback risk; and both riving knife and blade guard each have a quick-release, so mounting and removing them is fast and tool-free. A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting. The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat build-up. A newly designed push button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Sloped cabinet floor, dust shroud around the blade, and built-in port for dust extraction.
Features

Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts

Adjustable miter gauge

Arbor lock for rapid blade change

Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece and fine angle adjustments

Industrial magnetic switch has an easy-to-access, large ON/OFF switch with a built-in power indicator light and a removable magnetic safety key

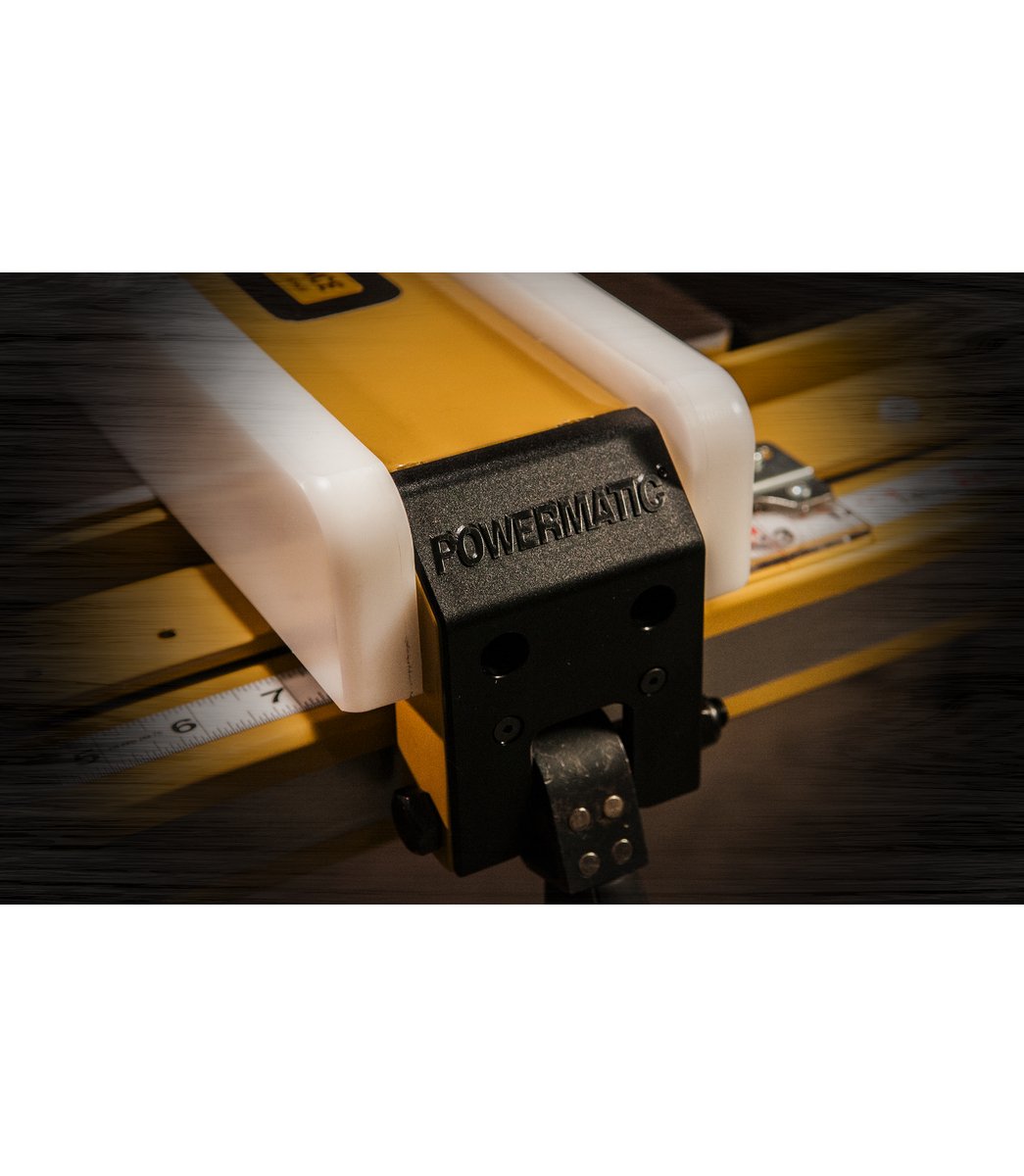

Industrial-duty Accu-Fence System ensures accurate cuts and increased safety

One piece, cast iron trunnion provides the strongest stability of any Powermatic table saw.

Poly-V drive belt system delivers efficient, quiet operation

Push-button arbor lock for rapid blade change

Quick-release riving knife lever for hassle-free riving knife changes

Specifications

More Information

Stock Number
PM375350K

Arbor Diameter (In.)
1

Arbor Speed (RPM)
4500

Blade Diameter (In.)
14

Dust Collection Minimum CFM Required (CFM)
600

Dust Port Outside Diameter (In.)
4

Gross Weight (Lbs)
600

Maximum Depth of Cut at 45 Degrees (In.)
3-1/2

Maximum Depth of Cut (In.)
3-1/2 or 5-1/8

Maximum Diameter of Dado (In.)
8

Maximum Rip Left of Blade (In.)
14

Maximum Rip Right of Blade (In.)
50

Maximum Width of Dado (In.)
13/16

Miter Gauge Type
T-Slot with Stops

Motor Amps
6.7

Motor Phase
3

Motor Power (HP)
7.5

Motor Voltage (V.)
230/460

Net Weight (Lbs.)
467

Overall Dimensions (L x W x H) (In.)
84-11/16 x 46-1/2 x 42-7/8

Prewired Voltage (V.)
230

Prop 65
Cancer and Reproductive Harm

Recommended Circuit Size (Amps.)
30

Style (Type)
Cabinet

Table Height from Floor (In.)
35-1/4

Table Size (L x W) (In.)
26 x 38

Table Type
Cast Iron
